7th Gen Intel® Core™ socket type Processor up to 35W
Chipset
Intel® PCH H110 (B537)Intel® PCH Q170 (B537-I)
Graphics
Intel® HD Graphics 600 series
Main Memory
2 x 260-pin SO-DIMM Sockets, Supports DDR4 1866/2133 MHz Non-ECC, Un-buffered Memory up to 32G (Single Socket Max. 16GB)

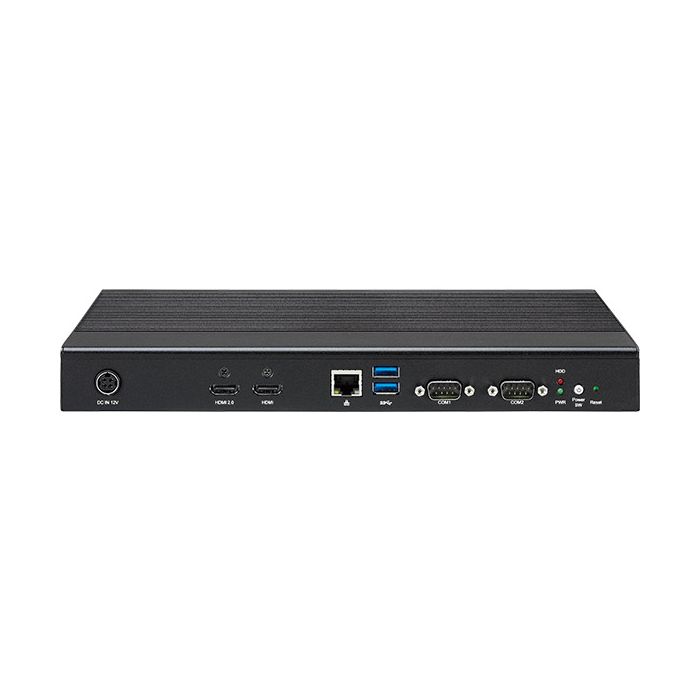

I/O Interface-Front
1 x Power Button with LED1 x Power LED/ HDD LED2 x USB3.01 x HDMI 2.0, 1 x HDMI 1.41 x Display Port (B537-I only)1 x RJ45 with LEDs for Gigabit LAN (2 x RJ45 for B537-I only)2 x COM Port1 x 4pin Mini-Din with Lock
Storage
1 x SATA 2.5” HDD/ SSD
I/O Interface-Rear
2 x USB 3.03 x Antenna Hole1 x MIC-in1 x Line-out
Expansion
1 x mini-PCIe Slot (Full Size)1 x NGFF (M.2) 2230 for Optional WLAN1 x SIM Slot
API
NEXCOM Xcare
Power Supply
1 x External 96W AC/ DC Power AdapterInput: 100VAC to 240VACOutput: DC+12VDC
Environment
Operating Temperature: -10°C to 45°CStorage Temperature: -20°C to 80°CHumidity: 10 to 90% (Non-condensing)
Certification
CE ApprovalFCC Class B
Dimensions
295mm (W) x 189.9mm (D) x 33mm (H)
Operating System Support
Win10/ Linux
