Shop NDiS-B560 8/9th Gen Fanless Embedded PC

SKU: NDIS-B560

Wide Temp Fanless Embedded PC - 8th/9th Gen Intel Core - 3 x HDMI

Key Features:

Support 9th and 8th Gen Intel Core i9/i7/i5/i3 LGA socket type embedded processor, up to 35W
Intel integrated UHD 630 graphic engine
Support 3 x independent 4K2K 60Hz display output
3 x HDMI 2.0, 6 x USB 3.0, 2 x GbE LAN, 4 x COM, 1 x Line-out, 1 x Mic-in
Support M.2 Key B/E/M
Fanless design
Support extended temperature -20~60°C

Datasheet

Description

The NDiS B560 fanless embedded player can handle demanding multimedia content as it is powered by the 9th and 8th generation Intel Core processor series and Intel 300 Series chipset integrated graphics controller. The NDiS B560 can be used in both indoor and outdoor applications such as DOOH, hospitality, brand promotion, digital menu boards, outdoor bus stations, and even smart stadiums due to its extended operating temperature range of -20 to 60 degrees Celsius. It also has three 4K2K independent display outputs and rich connectives including Wi-Fi and 4G, and 5G support.

Key Features:

Support 9th and 8th Gen Intel Core i9/i7/i5/i3 LGA socket type embedded processor, up to 35W
Intel Q370
Intel integrated UHD 630 graphic engine
Support 3 independent 4K2K 60Hz display output
Support 1 x 2.5” SATA HDD
3 x HDMI 2.0, 6 x USB 3.0, 2 x GbE LAN, 4 x COM, 1 x Line-out, 1 x Mic-in
Support M.2 Key B/E/M
Fanless design
Support extended temperature -20~60°C

Download

Datasheet

User Manual

More Information

Brand

Nexcom

Specifications

CPU Support	9th and 8th Gen Intel Core i9/i7/i5/i3 LGA socket type processor, up to 35W - Core i9-9900T, 8 Core, 2.1GHz, 16M Cache (0~40°C ) - Core i7-9700TE, 8 Core, 1.8GHz, 12M Cache - Core i5-9500TE, 6 Core, 2.2GHz, 9M Cache - Core i3-9100TE, 4 Core, 2.2GHz, 6M Cache - Core i7-8700T, 6 Core, 2.4GHz, 12M Cache - Core i5-8500T, 6 Core, 2.1GHz, 9M Cache - Core i3-8100T, 4 Core, 3.1GHz, 6M Cache
Chipset	Intel® PCH Q370
Graphics	Intel® UHD Graphics 630 series
Main Memory	2 x 260-pin SO-DIMM sockets, support DDR4 2666 MHz non-ECC, un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front	1 x Power button with LED1 x Power LED, 1 x HDD LED1 x Reset switch2 x USB 3.04 x DB9 for COM1~ COM4 - COM1: RS-232/422/485 - COM2~4: RS2322 x Antenna hole

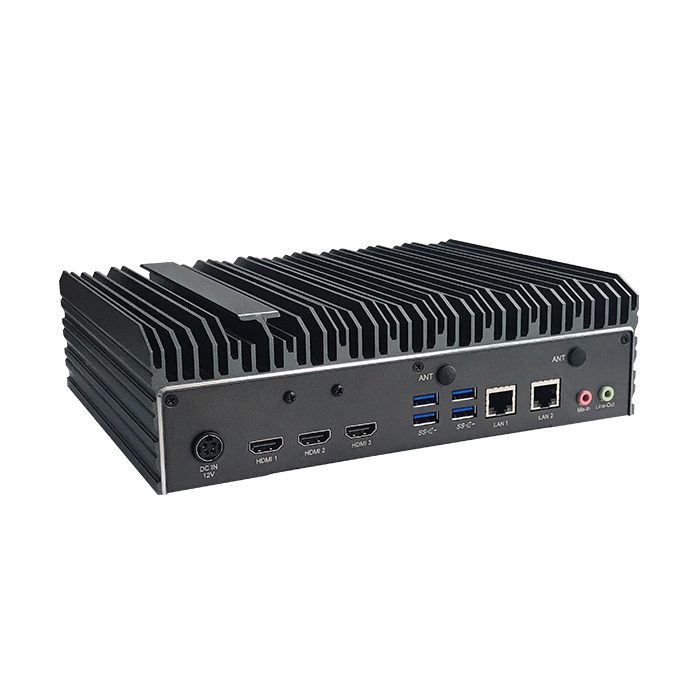

I/O Interface-Rear	+12V DC-in3 x HDMI 2.04 x USB 3.02 x RJ45 with LED for 10/100/1000Mbs1 x Mic-in, 1 x Line-out2 x Antenna hole
I/O Interface-Internal	8CH GPIO support 4 x GPO and 4 x GPIOnboard TPM 2.0 (by request)Support iAMT
Storage	1 x SATA 2.5” HDD/SSD1 x M.2 2280 (SATA, PCIe x4)/2242 (by request) Key M socket
Expansion	1 x M.2 2230 Key E (PCIe x2), support optional Wi-Fi modules1 x M.2 3042/3052 Key B (SATA, USB 3.0), support optional 3G, 4G or 5G modules1 x SIM slot
Power Supply	1 x External 96W AC/DC power adapterInput: 100VAC to 240VACOutput: DC+12VDC
Environment	Operating temperature: -20°C to 60°CStorage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing)
Certification	CE ApprovalFCC Class A
Dimensions	238mm (W) x 192mm (D) x 67.29mm (H)
Operating System Support	Win10/Linux
