2 x 260-pin SO-DIMM sockets, support DDR4 2666 MHz non-ECC, un-buffered memory up to 32G (single socket max. 16GB)

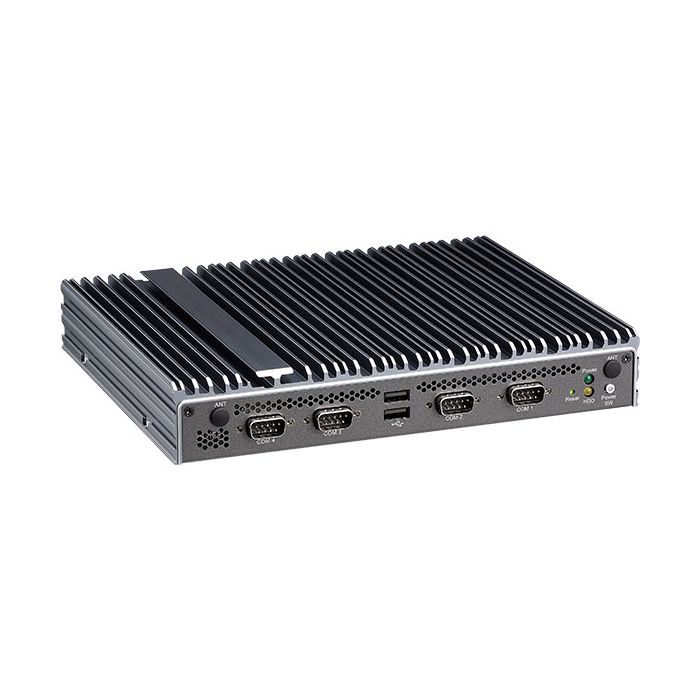

I/O Interface-Front
1 x Power button with LED1 x Power LED, 1 x HDD LED1 x Reset switch2 x USB 2.04 x DB9 for COM1~ COM4 - COM1: RS-232/422/485 - COM2~4: RS2322 x Antenna hole
I/O Interface-Rear
+12V DC-in3 x HDMI 2.04 x USB 3.02 x RJ45 with LED for 10/100/1000Mbs2 x Antenna hole
Ethernet
1 x Mic-in, 1 x Line-out2 x Antenna hole
I/O Interface-Internal
8CH GPIO support 4 x GPO and 4 x GPIOnboard TPM 2.0 (by request)
Storage
1 x SATA 2.5” HDD/SSD1 x M.2 2280 (SATA)/2242 (by request) Key M socket
Expansion
1 x M.2 2230 Key E (PCIe x2), support optional Wi-Fi modules1 x M.2 3042/3052 Key B (PCIe x1, USB 2.0), support optional 3G, 4G or 5G modules1 x SIM slot
Power Supply
1 x External 96W AC/DC power adapterInput: 100VAC to 240VACOutput: DC+12VDC
Environment
Operating temperature: 0°C to 40°CStorage temperature: -20°C to 80°CHumidity: 10 to 90% (non-condensing)
Certification
CE ApprovalFCC Class A
Dimensions
238mm (W) x 192mm (D) x 39mm (H)
Operating System Support
Win10/Linux
