NDiS-B562 Fanless Duro Edge Computer with Intel Core Series 2 & 14th Gen
Duro Edge Computer Powered by Intel® Core™ Processor (Series 2)/Intel® Core™ i Processor
Key Features:
- Intel® Core™ processor (Series 2)/14/13/12th Gen Intel® Core™ i processor
- Support Intel® AMT technology
- 2 x DDR5 SO-DIMM, up to 96GB
- 1 x HDMI® 2.0 output, up to 4096 x2160@60Hz
- 3 x Intel® LAN port
- 3 x USB 3.2 Gen 1x1, 2 x USB 2.0, 2 x DP 1.2
- Support PCIe 4.0 1x16/PCIe 4.0 2x8 expansion card/2 x 2.5” SSD swap bay
- TPM 2.0 for security
- 1 x M.2 Key B 3052/3042 for an optional 5G/LTE module
- 1 x M.2 Key E 2230 for an optional Wi-Fi module
- 1 x M.2 Key M 2280 for an optional SSD
- Support DC +12V~24V power input
Description
Product Overview

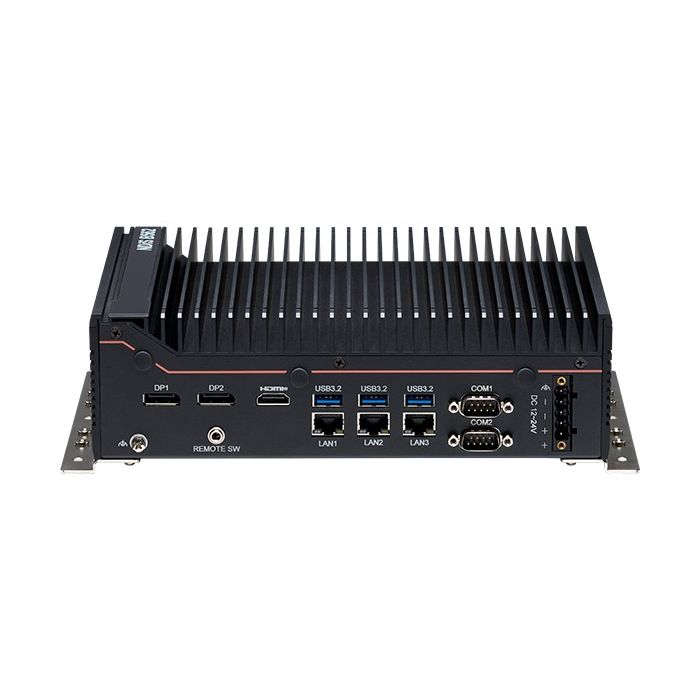

The NEXCOM NDiS B562 is a high-performance edge computer from the DURO Edge family, built for AI, IoT gateway and industrial computing tasks. It supports 12th, 13th, and 14th-Gen Intel® Core™ i processors (socket type) and features dual DDR5 SO-DIMM slots supporting up to 96 GB of memory. The unit offers three Intel LAN ports, multiple USB ports, HDMI and DisplayPort outputs, and PCIe 4.0 expansion slots (x16 or dual x8). Storage flexibility is included with two 2.5″ SSD swap bays and M.2 slots for SSD, Wi-Fi and 5G/LTE modules. With a wide DC power input of +12 V to +24 V, it is engineered for reliable operation in varied industrial or mobile environments.
Key Features
High Performance Computing
-
Supports 14th/13th/12th Gen Intel Core i processors and Intel AMT technology
-
Up to 96 GB DDR5 memory via 2 SO-DIMM slots
-
PCIe 4.0 x16 or dual x8 expansion options for external GPU, capture or compute cards
-
Two 2.5″ SSD swap bays for easy storage deployment
Connectivity & I/O
-
1 HDMI 2.0 output with up to 4096 × 2160 @ 60 Hz
-
2 DisplayPort 1.2 outputs
-
3 Intel LAN ports for robust network interfaces
-
3 USB 3.2 Gen1 ports, 2 USB 2.0 ports
-
M.2 Key B slot (for optional 5G/LTE module), M.2 Key E slot (for optional Wi-Fi module), M.2 Key M slot (for NVMe SSD)
-
Supports RS-232/RS-422/RS-485 COM ports for sensor or legacy device integration
Rugged and Reliable Design
-
Wide DC input range: +12 V to +24 V, designed for industrial and embedded applications
-
Compact chassis designed for edge deployments such as self-service kiosks, smart parking systems or transport technology
-
RAID-0 and RAID-1 capability via dual internal SATA SSDs to protect critical data
Expansion-Ready & Future-Proof
-
Optional external GPU or accelerator card via PCIe slots
-
Modular design supports Wi-Fi, 5G/LTE connectivity, NVMe high-speed storage
-
Designed with lifecycle flexibility and high uptime in mind
Certifications & Compliance
-
Built for industrial-grade deployment environments
-
Designed with long-life support and serviceability in mind
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
NDiS B562-H (P/N: 10W00B56200X0)
Duro Edge computer, Intel® Core™ processor (Series 2)/Intel® Core™ i processor, Intel® PCH H610E, 1 x HDMI® 2.0, 2 x DP 1.2
NDiS B562-Q (P/N: 10W00B56203X0)
Duro Edge computer, Intel® Core™ processor (Series 2)/Intel® Core™ i processor, Intel® PCH Q670E, 1 x HDMI® 2.0, 2 x DP 1.2
NDiS B562-DIF-Q-R8 (P/N: 10W00B56201X0)
Duro Edge computer, Intel® Core™ processor (Series 2)/Intel® Core™ i processor, Intel® PCH Q670E, 1 x HDMI® 2.0, 2 x DP 1.2, w/ dual PCIe x8 expansion kit (DockInfinity-R8)
NDiS B562-DIF-F (P/N: 10W00B56204X0)
Duro Edge computer, Intel® Core™ processor (Series 2)/Intel® Core™ i processor, Intel® PCH H610E, 1 x HDMI® 2.0, 2 x DP 1.2, w/ one PCIe x16 expansion kit, fan and ventilation holes (DockInfinity-F-R16)
NDiS B562-DIF-D (P/N: 10W00B56205X0)
Duro Edge computer, Intel® Core™ processor (Series 2)/Intel® Core™ i processor, Intel® PCH Q670E, 1 x HDMI® 2.0, 2 x DP 1.2, w/ dual SSD bay kit (DockInfinity-D)
DockInfinity-R8 (P/N: 10W00DOCK02X0)
Dual PCIe x8 expansion kit for Duro Edge computer
DockInfinity-F-R16 (P/N: 10W00DOCK00X0)
One PCIe x16 expansion kit with two-slot space for Duro Edge computer, w/ fan and ventilation holes
DockInfinity-D (P/N: 10W00DOCK03X0)
Dual SSD bay kit for Duro Edge computer
