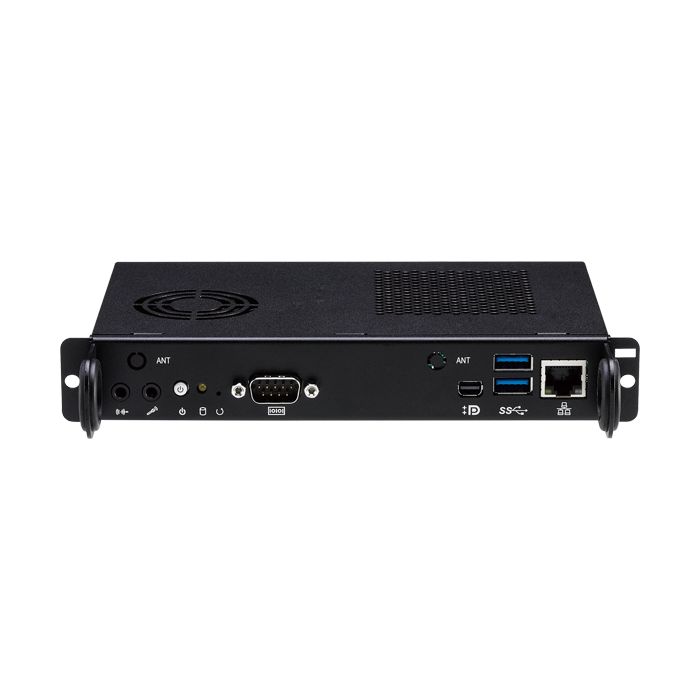

NDiS-M537 Embedded Computer 7th/6th Gen

In stock
SKU:
NDiS-M537
Brand: Nexcom

Embedded Computer Powered by 7th/6th Gen. Intel® Core™ Processor OPS PLUS-Based Digital Signage Platform, Support 4K Resolution


Enquire Now
Enquire about this product:

Embedded Computer Powered by 7th/6th Gen. Intel® Core™ Processor OPS PLUS-Based Digital Signage Platform, Support 4K Resolution



·         7th/6th generation Intel® Core™ processor

·         Intel® integrated HD 630 graphic engine

·         Support 3 independent 4K2K video out

·         Dual DDR4 SO-DIMM support

·         Support Wi-Fi module

·         DirectX® 12 support


This product is listed in Digital Signage, Nexcom
CPU Support 7th generation Intel® Core™ processor (LGA1151), 35W
6th generation Intel® Core™ processor (LGA1151), 35W
Chipset Intel® Q170 PCH
Graphic Intel® integrated HD 630 graphics
Main Memory 2 x 260-pin SO-DIMM sockets, supports DDR4 2133/2400 MHz
non- ECC, un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front 1 x Power button with LED 1 x Reset button
1 x RJ45 with LEDs for Gigabit LAN
1 x Mini DP connector for DisplayPort++ 2 x USB 3.0
1 x Storage active LED 2 x Antenna hole
1 x Mic-in phone jack 1 x Line-out phone jack
1 x DB9 for RS232 (COM3)
I/O Interface-Rear (TX25) 1 x TMDS (HDMI 2.0) 1 x USB 3.0
2 x USB 2.0 1 x UART (3.3V TTL) (COM2)
1 x Audio out L/R
DC input +12V~+19V Control signals
(PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
I/O Interface-Rear (FX18) 1 x GPIO signal 2 x I2C signal LAN managements signals
1 x DP1.2 signal PCIe x4 signal
Storage Device 1 x M.2 2242, SATA signal
Expansion 1 x M.2 2230 for optional Wi-Fi module
Dimensions 200mm (W) x 119mm (D) x 30mm (H) (7.8" x 4.7" x 1.1")
Power Power Supply DC power input +12V~+19V
Environment Operating temperature: ambient with air flow from 0°C to 45°C
Storage temperature: -20°C to 80°C Humidity: 95% (non-condensing)
Certification CE/FCC Class A
Operating System 7th generation Intel® Core™: Win10 (64-bit)
6th generation Intel® Core™: Win7 (32/64-bit)/Win10 (64-bit)
