SKU: NDiS-S538

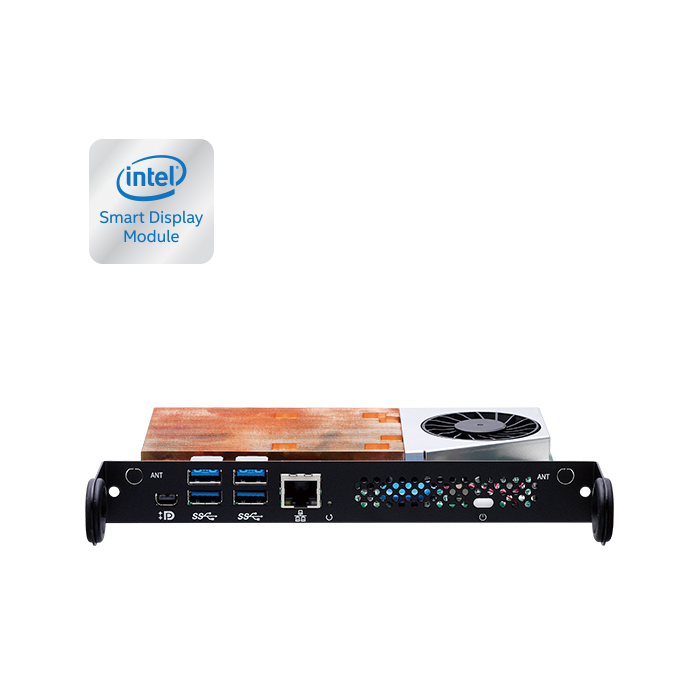

Embedded Computer Powered by 6th Gen. Intel® Core™ Processor. Intel® SDM-L Based Digital Signage Platform, Support 4K Resolution

Datasheet

Description

Intel® Smart Display Module Large (Intel® SDM-L) 6th gen Core™ CPU

Intel® integrated HD 530 graphic engine

3 independent 4K2K video out

Dual DDR4 SO-DIMM

Support Wi-Fi module

Data sheet

Brand

Nexcom

Specifications

CPU Support	6th generation Intel® Core™ processor (LGA1151), 35W
Chipset	Intel® Q170 PCH
Graphic	Intel® integrated HD 530 graphics
Main Memory	2 x 260-pin SO-DIMM Sockets, Supports DDR4 2133/2400 MHz non- ECC, un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front	1 x Power button with LED1 x Reset button1 x RJ45 with LEDs for Gigabit LAN1 x Mini DP ++4 x USB 3.02 x Antenna hole
I/O Interface-Rear (PCIe x8)	1 x HDMI1.4 signal1 x DP1.2 signal2 x I2C, master and slave ports signal1 x GSPI signal1 x PCIe by 1 signalSystem management
Storage Device	1 x M.2 2280, PCIe x4 + SATA
Expansion	1 x M.2 2230 for optional Wi-Fi module
Dimensions	175mm (W) x 100mm (D) x 20mm (H)
Power Power Supply	DC power input +12V
Environment	Operating temperature: ambient with air flow from 0°C to 55°CStorage temperature: -10°C to 70°CHumidity: 95% (non-condensing)
Certification	CE/FCC Class A
Operating System	Win10 64-bit/Linux
