NDiSV1000 - AMD V1605B
In stock
SKU:
NDiSV1000 - AMD V1605B
Brand: Nexcom

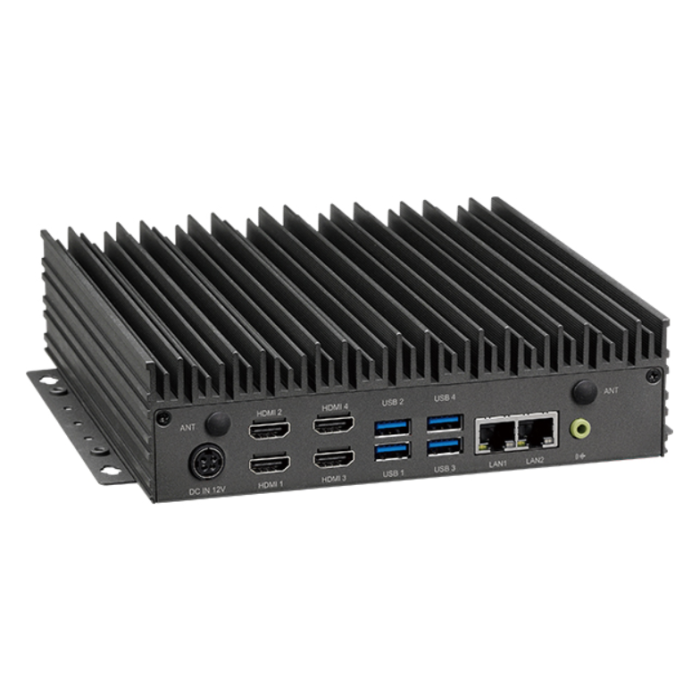

Multi-Display Embedded Computer Powered by AMD V Series Quad APU Processor
Please fill in your details below, we will get back to you as soon as possible
Onboard AMD V1605B APU processor
Graphics operating at up to 1.1 GHz
Dual DDR4 SO-DIMM, up to 32G
Support 4 x HDMI 2.0 for video wall application
Support M.2 M Key, 2280/2242 size storage device
4 x USB 3.0 support
M.2 E key slot for optional Wi-Fi module
1 x Onboard TPM 2.0 IC
| CPU Support | AMD Ryzen™ Embedded V1605B, TDP 15W |
| Graphics | AMD Radeon™ Vega 8 |
| Main Memory | 2 x 260-pin SO-DIMM socket, support up to DDR4 2400/2666MHz, non-ECC, un-buffered memory up to 32GB |
| I/O Interface-Front | 1 x Storage active LED1 x Power button1 x RAS232 (support RS232/422/485) |
| I/O Interface-Rear | 2 x Antenna hole4 x USB 3.04 x HDMI 2.0 with resolution up to 4096 x 2160 @ 60Hz2 x RJ45 with LEDs for Gigabit LAN (Intel® I211-AT)1 x +12V DC-in Jack (4-pin)1 x Audio Line-out |
| Internal IO | 3 x RS232 via box header2 x USB 2.0 pin headerGPIO connector |
| Expansion | 1 x M.2 E Key 2230, support optional Wi-Fi module |
| Storage | 1 x M.2 M Key 2242/2280 optional SATA 3.0 SSD |
| Power Supply | 1 x External 12+/-5% VDC, 120W Input, DC jack connector 4-pin |
| Environment | Operating temperature: 0°C to 40°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing) |
| Certification | CE (EMC EN55032 +EN55024)FCC Class A (EMI part 15B)LVD |
| Dimensions | 190mm (L) x 200mm (W) x 54.4mm (H) |
| Operating System Support | Win10 64-bit/Linux4.1 |
