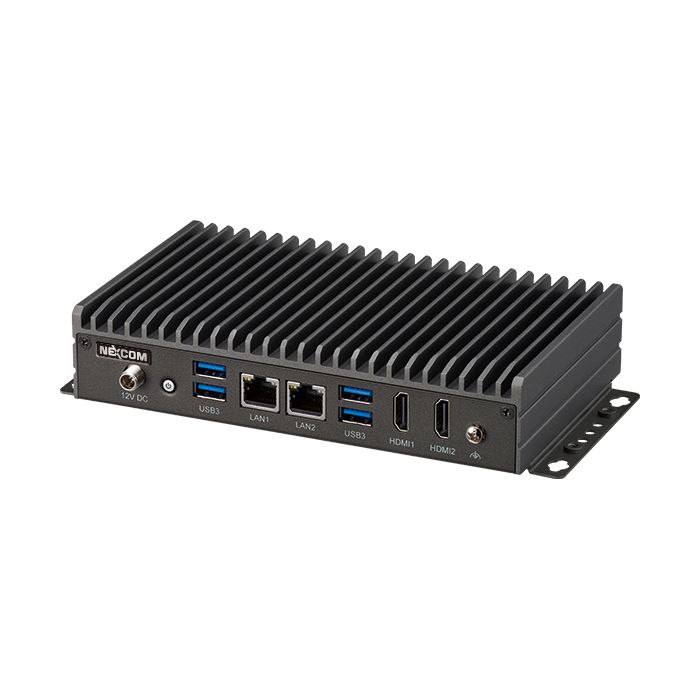

Neu-X102-N97 Edge Computing System Powered by Intel N97
Edge Computing System Powered by Intel® Processor N97 (Alder Lake-N)
Key Features:
- Intel® processors N97 (Alder Lake-N), Intel 7 process
- Slim compact chassis and fanless design
- 1 x DDR4 SO-DIMM socket, max up to 16GB
- Support 2 x HDMI 1.4b output, 4K@30Hz
- TPM 2.0 onboard design for security
- Richful I/O connectivity: 2 x 2.5GbE LAN, 4 x USB 3.2 Gen2
- 1 x M.2 2242 Key M for supporting PCIe & SATA storage device
- 1 x mini-PCIe slot supports Wi-Fi and LTE module
- Support power input 12 VDC
The Neu-X102 series is powered by Intel® processors N50 and N97 (Alder Lake-N), boasting enhanced computing performance while maintaining low power consumption. Integrated with a rich array of IoT features, these devices offer optimal efficiency. They come equipped with 2 x HDMI 1.4b display outputs, dual 2.5GbE LAN ports, 4 x USB 3.2 Gen2 ports, 1 x RS232/RS422/RS485 port, and an M.2 2242 Key M storage slot supporting both PCIe and SATA formats. Additionally, the mPCIe slot supports LTE and Wi-Fi 6/6E modules, facilitating wide-area coverage and real-time transmission for gateway applications.
Designed to be slim, compact, and fanless, with extended durability, the Neu-X102 series caters to a variety of uses such as IoT gateways, self-service kiosks, endless aisles, QSRs, drive-thru kiosks, bus stops, digital transit information signs, intelligent pole/lighting systems, and information display systems like PIDS for smart cities.a
|
CPU Support |
|
|
Graphic & Display |
|
|
Main Memory |
|
|
I/O Interface-Front |
|
|
I/O Interface-Rear |
|
|
Internal I/O |
|
|
Expansion |
|
|
Storage |
|
|
Power Supply |
|
|
Environment |
|
|
Mechanical & Dimension |
|
|
Certification |
|
|
Operating System |
|
