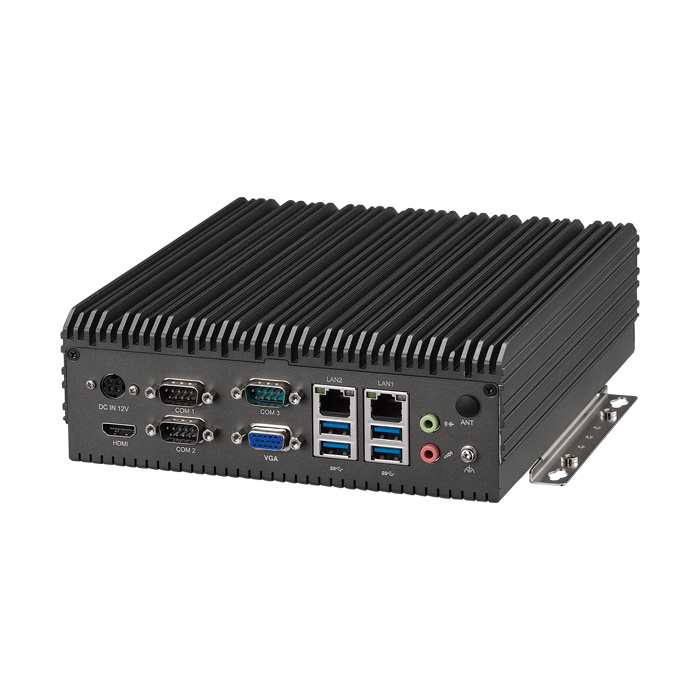

Neu-X302 Edge Computing System
In stock
SKU:
Neu-X302
Brand: Nexcom
Edge Computing System Powered by 8th/9th Generation Intel Core Processor
Enquire Now
Enquire about this product:
The Neu-X302 fanless computer has a wide range of I/Os to ensure that all of your important devices are linked without the need for additional expansion cards. The number of COM and USB ports has been increased, with six COM (three RS232 and three RS232/422/485) ports to connect your peripheral controllers and ten USB ports for ancillary devices such as sensors and signal testing equipment. This system incorporates a VGA connector for graphic output, which is essential for kiosks and equipment service panels. This is in addition to HDMI output for a second, independent screen with 4K resolution for factory display panels.
Features
- Support 8th/9th Intel® Core™ socket type processor
- Dual-channel DDR4 SO-DIMM, 32GB max.
- 1 x VGA and 1 x HDMI 1.4 4K display output
- Dual Intel® LAN ports
- 6 x COM port, 10 x USB, Mic-in/Line-out
- Optional TPM 2.0 for security advantage
- Support Intel® AMT Technology
- Onboard M.2 Key B/E for storage & wireless connection
| CPU Support | Generation: 8th Coffee Lake - Socket type: FCLGA1151 - CPU: i3-8100T - Smart Cache: 6M - Cores: 4 - Threads: 4 - Base Frequency: 3.1GHz, TDP: 35WGeneration: 8th Coffee Lake - Socket type: FCLGA1151 - CPU: i5-8100T - Smart Cache: 9M - Cores: 6 - Threads: 6 - Base Frequency: 2.1GHz, TDP: 35WGeneration: 8th Coffee Lake - Socket type: FCLGA1151 - CPU: i7-8100T - Smart Cache: 12M - Cores: 6 - Threads: 12 - Base Frequency: 2.4GHz, TDP: 35WGeneration: 9th Coffee Lake Refresh - Socket type: FCLGA1151 - CPU: i3-9100TE - Smart Cache: 6M, Cores: 4 - Threads: 4 - Base Frequency: 2.2GHz, TDP: 35WGeneration: 9th Coffee Lake Refresh - Socket type: FCLGA1151 - CPU: i5-9100TE - Smart Cache: 9M, Cores: 6 - Threads: 6 - Base Frequency: 2.2GHz, TDP: 35WGeneration: 9th Coffee Lake Refresh - Socket type: FCLGA1151 - CPU: i7-9100TE - Smart Cache: 12M, Cores: 8 - Threads: 8 - Base Frequency: 1.8GHz, TDP: 35W |
| Chipset & Memory | Intel® PCH Q370Intel® PCH H3102x DDR4 SO-DIMM socket, supports up to 32G DDR4 2666 SDRAM, with un-buffered and non-ECC |
| Graphic & Display | Intel® UHD Graphics 6301 x VGA output on the edge, resolution up to 1920 x 1200 @ 60Hz1 x HDMI 1.4 output on the edge, resolution up to 4096 x 2160 @ 30Hz1 x LVDS internal connector, dual channel, resolution up to 1920 x 1200 @ 60Hz (eDP: by request) |
| I/O Interface on the Front | Power button HDD LED status3 x RS232 DB9 COM port (COM4 support RI 5V or 12V)2 x Antenna holes |
| I/O Interface on the Rear | +12V DC input1 x HDMI 1.4 output, resolution up to 4096 x 2160 @30Hz3 x RS232/422/485 DB9 COM ports1 x VGA output2 x Intel® GbE LAN ports (Intel® I219-LM and I211-AT)4 x USB 3.01 x Mic-in, 1 x Line-out powered by Realtek ALC888 |
| Internal I/O Function | 6 x USB 2.0, internal pin header (with Intel® Q370 chipset)4 x USB 2.0, internal pin header (with Intel® H310 chipset)8 channel GPIO, 5V TTL level1 x Internal pin header for speaker with 2W amplifier |
| Expansion | 1 x M.2 Key E, 2230, support optional Wi-Fi/Bluetooth module1 x M.2 Key B, 2242/3042, support optional SSD/3G/4G or LTE module1 x SIM card holder for M.2 Key B use |
| Storage | 1 x 2.5” SATA SSD space1 x M.2 Key B, 2242, support optional storage module if 3G / 4G / LTE will not be used |
| Power Requirements | +12V DC inputEquip with 96W AC/DC power adapter in cartonAT/ATX power setting by jumper (ATX as the default) |
| Environment | Operating temperature: -5°C to 45°C ambient with air flow (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Relative humidity (non-condensing): 95% (non-condensing)Storage temperature: -20°C to 80°CShock protection: 50G peak acceleration, 11ms according to IEC60068-2-27V ibration protection - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6 |
| Certification | CE approval (EN55032/EN55035)FCC Class A |
| Mechanical & Dimension | Aluminium and metal chassis with fanless design200mm (L) x 190mm (W) x 64.3mm (H) without mounting bracket200mm (L) x 212.5mm (W) x 70.3mm (H) with mounting bracket |
| Weight Information | Gross weight: 4.25kgsNet weight: 2.68kgs |
