Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory
1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB
Video Output
Chipset Intel® HD graphics 5052 x VGA up to 1920 x 1200 @60Hz
Storage
1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)1 x CFast (externally accessible), optional mSATA
Expansion
1 x Full size mini-PCIe socket (USB 2.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0), optional full size mini-PCIe socket (USB 2.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)1 x M.2 3042 B key (USB 2.0, USB 3.0) with 2 x external SIM1 x M.2 3042 B key (USB 2.0, USB 3.0, PCIe 2.0) with 2 x external SIM
GNSS and On Board Sensor
1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U modules with dead reckoning availableG Sensor (3-axis, 10-bit resolution)
LAN and Power over Ethernet
2-Port LAN, 10/100/1000 Mbps I210-IT GbE, optional 3-port LAN

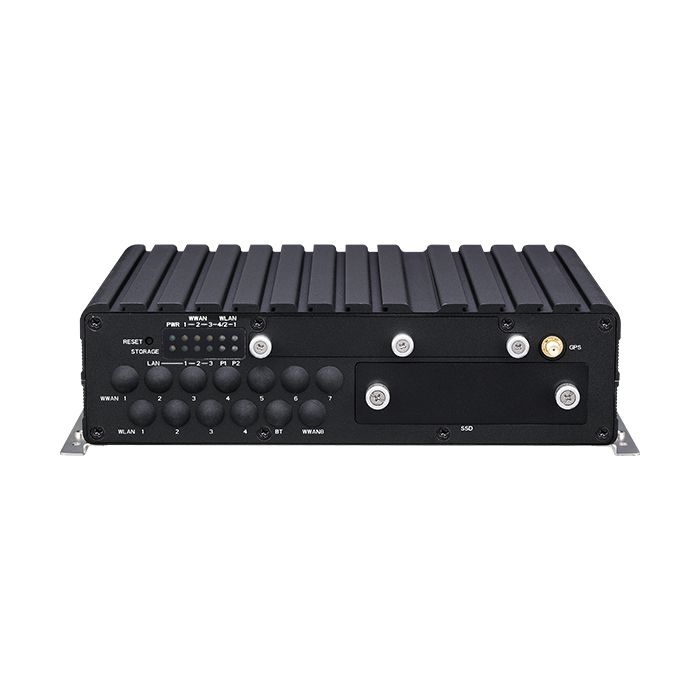

I/O Interface-Front
12 x LED indicators (including 2 x programmable LED)6 x Externally accessible SIM card sockets with cover1 x 2.5" removable SSD tray1 x Externally accessible CFast card socket with cover1 x Reset button1 x Power button1 x USB 3.0 type A (5V/0.9A)14 x SMA antenna
I/O Interface-Rear
1 x Circle type DC input with ignition - 24 VDC (16.8~31.2V), w/ 2.5KVDC isolation1 x M12 (COM) A-coded full RS-232 (isolation)1 x M12 with two USB 2.02 x M12 X-coded LAN port, 10/100/1000 Mbps1 x M8 (AUDIO) for 1 x Mic-in, 1 x Line-out2 x VGA1 x M12 (MULTI PORT) A-coded RS-232 TX/RX, RS-485, CAN Bus 2.0B (all w/ isolation )1 x M12 (GPIO) A-coded GPIO - 4 x DI with isolation - 3 x DO with isolation
Power Management & Software Support
Power input 24 VDC w/ isolationSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code
Operating System
Windows 10/Linux
Dimensions
260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75")
Weight
3.0kg
Environment
Operating temperatures - 40°C to 70°C (w/ industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications
CEFCC Class AEN50155: 2017 - Ambient temperature EN 50155, class OT4 (-40~70°C) - Shock and vibration IEC 61373 class B - Interruptions of voltage supply class S1, S2 - Supply change over class C1, C2 - EMC EN 50121-3-2: 2016
