Brand
Nexcom
Specifications
CPU
Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory
1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB
Video Output
Chipset Intel® HD graphics 505 2 x HDMI 1.4b up to 4096 x 2160 @30Hz 1 x VGA up to 1920 x 1200 @60Hz
Storage
2 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive) 1 x SD memory card 3.0 (externally accessible) 1x USB EDC for USB DOM
Expansion
1 x Full size mini-PCIe socket (USB 2.0, USB 3.0, Co-lay M.2) with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0) 1 x Falf size mini-PCIe socket (USB 2.0 + PCIe 2.0)
GNSS and On Board Sensor
1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou G Sensor (3-axis, 10-bit resolution) TPM 2.0 (optional)
12 x LED indicators (including 3 x programmable LED) 2 x externally accessible SIM card socket with cover 2 x 2.5" removable SSD tray 1 x externally accessible SD card socket with cover 1 x reset button 1 x power button 1 x USB 3.0 type A (5V/0.9A) 2 x HDMI 1.4b 1 x M8 (6-pin) for 1 x Mic-in (mono), 1 x Line-out (Stereo) 2 x SMA antenna

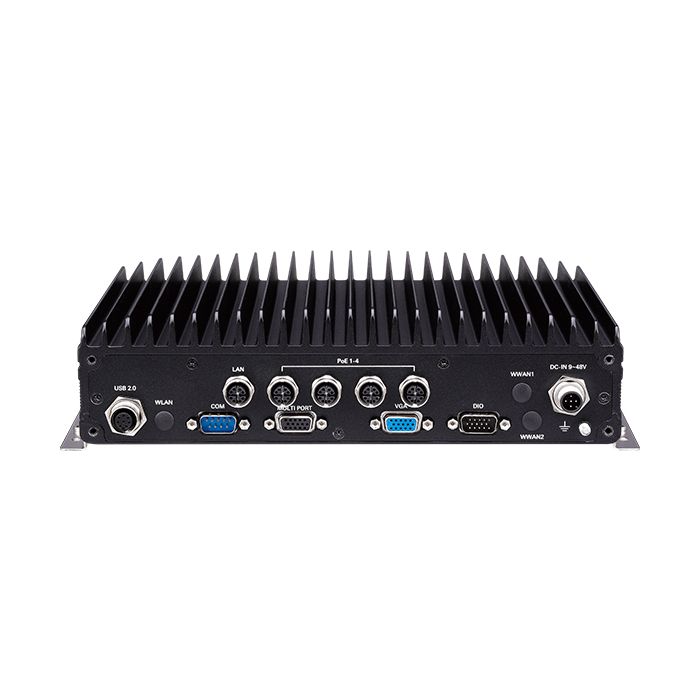

I/O Interface-Rear
1 x M12 (5-pin) DC input with ignition - 24 / 36 VDC (9~48V), non-isolation 1 x M12 X-coded LAN port, 10/100/1000 Mbps 4 x M12 X-coded PoE 802.3af/at (max. 60W) 1 x VGA 1 x M12 with two USB 2.0 1 x DB9 full RS-232 (isolation) 3 x SMA antenna 1 x DB15 - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO 1 x DB15 - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B
Power Management & Software Support
Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code
Operating System
Windows 10/Linux/YOCTO (by request)
Dimensions
260mm (W) x 196mm (D) x 66.5mm (H)
Weight
3.4kg
Environment
Operating temperatures: -40°C to 70°C (w/industrial SSD) with air flow Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (SSD) Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications
CE FCC Class A EN 50155:2017 Ambient temperature EN 50155, class OT4 (-40 ~ 70°C) Shock and vibration IEC 61373 class B Interruptions of voltage supply class S1,S2 Supply change over class C1,C2 EMC EN 50121-3-2:2016
