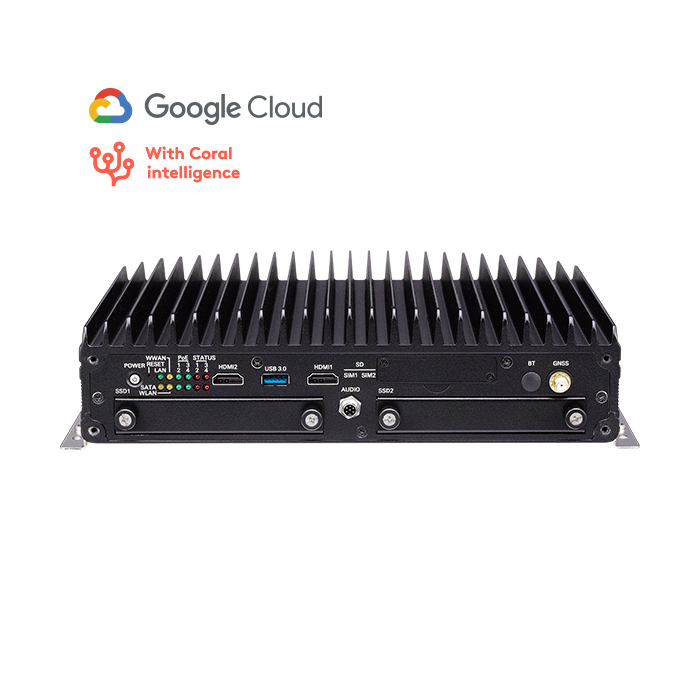

nROK6222-GCIoT Google Cloud AI Edge Rolling Stock Solution
In stock
SKU:
nROK6222-GCIoT
Brand: Nexcom
Rolling stock PC, Intel Atom® x7-E3950 quad core CPU, 4 x POE, Google Edge TPU, EN50155-2
Downloads:
Enquire Now
Enquire about this product
Based on the Intel Atom quad core processor E3950 (up to 2.0GHz), the nROK 6222-GCIoT meets the stringent EN50155 standard in a rugged, fanless, and compact mechanism. With a built-in CAN BUS 2.0B interface, the nROK 6222-GCIoT provides complete communication capability between train and computer. The nROK 6222-GCIoT is equipped with intelligent power management and can be remotely turned on via ignition, RTC timer, or SMS message. To connect with IP cameras, the nROK 6222-GCIoT has 4 x 802.3at/3af (Max. 60W) PoE ports. The 2.5" removable SSD and SD memory card design facilitates storage access. nROK 6222-GCIoT maintains flexibility in order to meet the demand for video surveillance in train applications. Furthermore, an attachable VTK6222-PK power isolation kit protects the nROK 6222-GCIoT from unexpected power surges.
Key Features:
- Built-in Google Edge TPU ML accelerator coprocessor
- Intel Atom processor quad core E3950, up to 2.0GHz
- 4 x PoE (802.3af/at, max. 60W)
- Built-in u-blox-M8N GPS
- Three video outputs, one VGA and two HDMI
- EN50155 conformity
- 3 x mini-PCIe socket expansion
- Dual external storage (compatible with 15mm disk)
- 1 x USB DOM to run OS
- 1 x SD card for exporting and backing up data
- Optional power isolation kit support
| CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB |
| Google Edge TPU (Coral ML Accelerator Card) | Hardware interface: mini-PCIe (half size)Serial interface: PCIe Gen2 x1Performance: 4TOPS @2WattOperating voltage: 3.3V +/- 10 %Dimensions: 30mm x 26.8mm x 2.5 mm |
| Video Output | Chipset Intel® HD graphics 5052 x HDMI 1.4b up to 4096 x 2160 @30Hz1 x VGA up to 1920 x 1200 @60HzGoogle Edge TPU (Coral ML Accelerator Card) |
| Storage | 2 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)1 x SD memory card 3.0 (externally accessible)1x USB EDC for USB DOM |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 Key B (USB2.0 + USB 3.0) with 2 x external SIM1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)1 x Falf size mini-PCIe socket (USB 2.0 + PCIe 2.0) |
| GNSS and On Board Sensor | 1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouG Sensor (3-axis, 10-bit resolution)TPM 2.0 (optional) |
| LAN and Power over Ethernet | 4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1-Port LAN, 10/100/1000 Mbps I210-IT GbE |
| I/O Interface-Front | 12 x LED indicators (including 3 x programmable LED)2 x externally accessible SIM card socket with cover2 x 2.5" removable SSD tray1 x externally accessible SD card socket with cover1 x reset button1 x power button1 x USB 3.0 type A (5V/0.9A)2 x HDMI 1.4b1 x M8 (6-pin) for 1 x Mic-in (mono), 1 x Line-out (Stereo)2 x SMA antenna |
| I/O Interface-Rear | 1 x M12 (5-pin) DC input with ignition - 24 / 36 VDC (9~48V), non-isolation1 x M12 X-coded LAN port, 10/100/1000 Mbps4 x M12 X-coded PoE 802.3af/at (max. 60W)1 x VGA1 x M12 with two USB 2.01 x DB9 full RS-232 (isolation)3 x SMA antenna1 x DB15 (DIO) - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO1 x DB15 (MULTI PORT) - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B |
| Power Management & Software Support | Power input 24/36 VDC w/o isolationSelectable boot-up & shut-down voltage for low power protection by softwareSetting 8-level power on/off delay time by softwareSupport S3/S4 suspend mode10~255 seconds WDT support, setup by softwareSDK (Windows/Linux) including utility and sample code |
| Operating System | Debian Linux and other variants |
| Dimensions | 260mm (W) x 196mm (D) x 66.5mm (H) |
| Weight | 3.4kg |
| Environment | -20°C~60°C (w/ Google Edge TPU & industrial SSD) with air flowStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random) - 2g@5~500 Hz (in operation, SSD)Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| Standards/Certifications | CEFCC Class AEN 50155:2017 - Ambient temperature EN 50155, class OT4 (-40 ~ 70°C) - Shock and vibration IEC 61373 class B - Interruptions of voltage supply class S1,S2 - Supply change over class C1,C2 - EMC EN 50121-3-2:2016 |
