NRU-170-PPC IP66 10.1” Panel PC with NVIDIA Jetson Orin NX/Nano

Product Overview

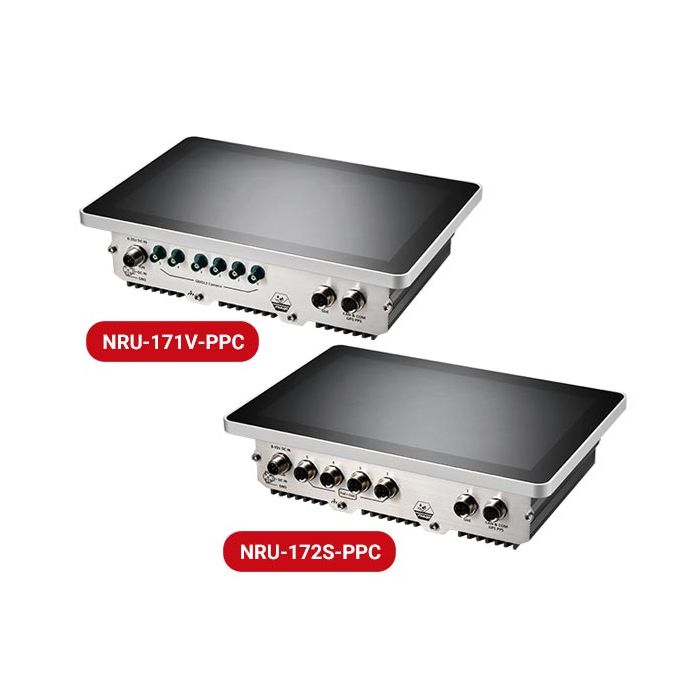

The Neousys NRU-170-PPC Series is an IP66-rated 10.1-inch NVIDIA Jetson Orin NX and Orin Nano AI panel PC, designed for rugged edge AI applications that require both on-site human interaction and reliable outdoor operation. Delivering up to 100 TOPS of AI performance, the NRU-171V-PPC and NRU-172S-PPC are well-suited to ADAS for off-highway vehicles, autonomous marine vessels, food-processing inspection, smart livestock monitoring, and precision agriculture. With a high brightness touchscreen, fanless operation, M12 rugged connectors, GMSL2 or PoE+ camera options and wide range DC input with ignition control, the series provides an all-in-one rugged AI platform for harsh field deployments.

Key Features

NVIDIA Jetson Orin Platform

• Powered by NVIDIA Jetson Orin NX or Orin Nano SoM

• Up to 100 TOPS of AI processing performance

• NVIDIA Ampere GPU and Arm Cortex CPU architecture

• Supports JetPack for Jetson software deployment

• Memory options include 16 GB or 8 GB LPDDR5 on Orin NX and 8 GB or 4 GB LPDDR5 on Orin Nano

IP66 Rugged AI Panel PC Design

• IP66 waterproof and dustproof enclosure

• 10.1-inch integrated touchscreen for local control and monitoring

• 1920 × 1200 resolution

• 1000 cd/m² brightness for outdoor visibility

• 1000:1 high contrast ratio

GMSL2 and PoE+ Camera Options

• NRU-171V-PPC supports 6 x GMSL2 automotive cameras via FAKRA Z connectors

• NRU-172S-PPC supports 4 x PoE+ GbE ports via M12 X-coded connectors

• PoE+ ports support IEEE 802.3at with a 50 W total power budget

• Suitable for AI vision, ADAS, inspection and mobile camera applications

• Compatible with a range of GMSL2 2D and 3D cameras with pre-built driver support

Rugged Field Connectivity

• 1 x Gigabit Ethernet port via M12 X-coded connector

• 2 x USB 2.0 ports via M12 A-coded connector

• 1 x USB Type-C port for system flashing and OTG access

• 1 x CAN FD port via M12 A-coded connector

• 1 x RS-232 port via M12 A-coded connector

Wireless and Storage Expansion

• 1 x full-size Mini PCIe socket

• 1 x M.2 3042/3052 B Key socket for LTE or 5G module expansion

• Dual micro SIM support for cellular connectivity

• 1 x M.2 2242 M Key socket for NVMe SSD storage

• Designed for connected vehicle, agriculture, marine and industrial AI deployments

Wide Power and Ignition Control

• 8 V to 35 VDC wide range input

• Built-in ignition power control

• Rugged M12 A-coded 5-pin power connector

• Suitable for vehicle, mobile machinery and field equipment installations

• Designed for unstable and variable DC power environments

Fanless Wide Temperature Operation

• Fanless operation from -25°C to 60°C with passive cooling

• Designed to operate without throttling at 60°C in MAXN TDP mode

• Storage temperature from -40°C to 85°C

• 10% to 90% relative humidity, non-condensing

• MIL-STD-810H vibration and shock tested

Certifications and Mounting

• CE and FCC Class A compliance

• EN 50121-3 compliance on NRU-172S-PPC models

• Standard VESA 75 mounting support

• Suitable for mobile, outdoor and industrial installations

• Compact all-in-one design reduces cabling and installation complexity

Applications and Use Cases

The NRU-170-PPC Series is suitable for:

• Off-highway vehicle ADAS

• Precision agriculture systems

• Smart livestock monitoring

• Autonomous marine vessels

• Food processing inspection

• Outdoor robotics and mobile machinery

• AI camera and sensor-based field applications

• Rugged HMI and edge AI control systems
