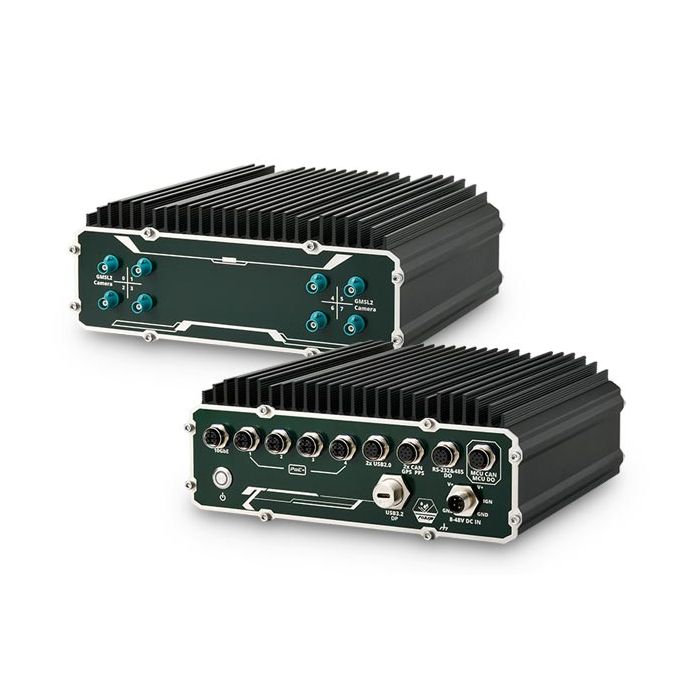

NRU-230V/240S-AWP IP66 Waterproof NVIDIA Jetson AGX Orin Computer

Product Overview

The Neousys NRU-230V-AWP and NRU-240S-AWP are IP66 waterproof NVIDIA Jetson AGX Orin edge AI computers designed for harsh outdoor, vehicle and industrial environments. Powered by the NVIDIA Jetson AGX Orin system-on-module, the series delivers up to 275 sparse INT8 TOPS for real-time AI inference, video analytics and vision-based applications. With rugged fanless operation, M12 waterproof I/O, PoE+ camera support, 10GbE networking and wide range DC input with ignition control, the NRU-230V-AWP and NRU-240S-AWP are well suited to roadside systems, industrial vehicles, outdoor AMRs, mining, construction, agriculture and edge inspection applications.

Key Features

NVIDIA Jetson AGX Orin Platform

• NVIDIA Jetson AGX Orin system-on-module

• NVIDIA Ampere GPU and Arm Cortex-A78AE CPU architecture

• Up to 275 sparse INT8 TOPS for AI inference

• 32 GB or 64 GB LPDDR5 memory options

• 64 GB eMMC 5.1 onboard storage

GMSL2 Camera Support

• NRU-230V-AWP supports 8 x GMSL2 FAKRA Z camera connectors

• Supports automotive cameras and industrial stereo cameras

• Camera configuration options include 2MP, 3MP and 5MP models

• Suitable for ADAS, surround view, machine vision and video analytics applications

Rugged IP66 Waterproof Design

• IP66 waterproof and dustproof enclosure

• Fanless design for reliable operation in harsh environments

• Designed for outdoor, vehicle and industrial deployments

• Built for roadside, mining, agriculture, construction and factory applications

PoE+ and 10GbE Networking

• 4 x Gigabit Ethernet ports via M12 X-coded connectors

• IEEE 802.3at PoE+ PSE support on ports 1 to 4

• Total PoE power budget of 100 W

• 1 x 10GBASE-T port via M12 X-coded connector

• Supports high-speed data transfer for AI vision systems

Vehicle and Industrial I/O

• 2 x isolated CAN 2.0 ports

• 1 x isolated RS-485 port

• 1 x RS-232 port

• 1 x isolated DI with GPS PPS input support

• 1 x isolated DO

• M12 A-coded connectors for rugged field connectivity

Display, USB and System Monitoring

• Waterproof USB Type-C connector with USB 3.2 Gen1 support

• DisplayPort output up to 3840 × 2160 at 60 Hz

• 2 x USB 2.0 ports via M12 A-coded connector

• System monitoring port via automotive-grade MCU

• Supports monitoring of power, thermal and Jetson system status

Storage and Expansion

• 2 x internal SATA ports for 2.5 inch SSD installation

• 1 x M.2 2280 M Key NVMe socket with PCIe Gen4 x2 support

• 1 x full size Mini PCIe socket for WiFi 6 or CAN expansion

• 1 x full size Mini PCIe socket for GNSS or 4G LTE

• 1 x M.2 3042/3052 B Key socket for LTE or 5G module

• Dual micro SIM support for cellular connectivity

Wide Power and Environmental Support

• 8 V to 48 V wide range DC input

• Built-in ignition power control

• Operating temperature from -25°C to 70°C on JAO32 and JAO64 models depending on operating mode

• Operating temperature from -40°C to 70°C on JAOi models, depending on operating mode

• Storage temperature from -40°C to 85°C

• MIL-STD-810H vibration and shock tested

• CE, FCC Class A and EN 50121-3 compliance

Applications and Use Cases

The NRU-230V-AWP and NRU-240S-AWP are suitable for:

• Roadside AI vision systems

• Industrial vehicle automation

• Outdoor AMRs and robotics

• ADAS and surround view applications

• Mining and construction equipment

• Agriculture automation

• Edge inspection and machine vision

• IP camera and GMSL2 camera deployments



Dimensions/Drawings
