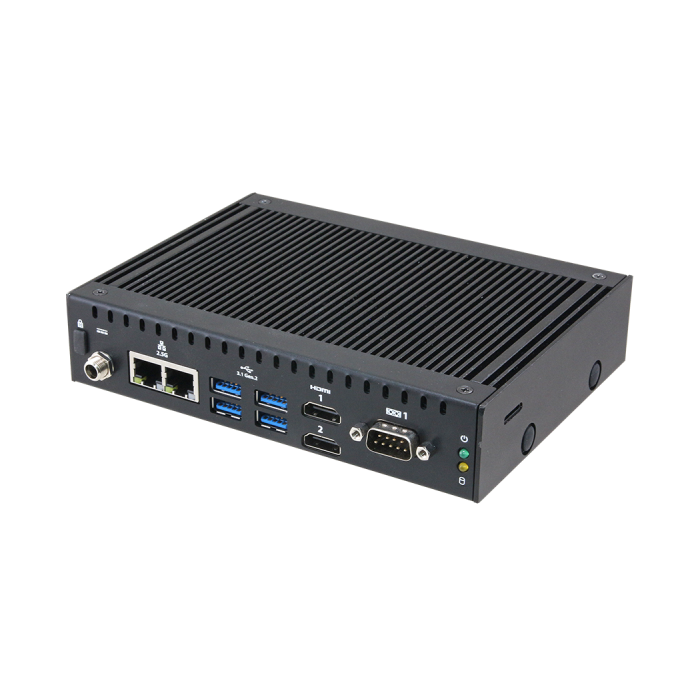

NUC-EHL Fanless NUC Slim PC

SKU: NUC-EHL-J12-A1-1R

Intel Celeron J6412 Fanless NUC Slim System

Key Features:

  • Intel® Celeron® Processor J6412
  • Single DRAM Socket, Max. Up to 32GB DDR4 3200MHz
  • Rich I/O, 2-COM, 2-HDMI, 2-LAN (2.5GbE), 6-USB3.0, Micro SD slot, Kensington Lock
  • Fanless operating from 0~60°C
  • On Board TPM 2.0, Default Table Stand
  • IP40, HDMI2.0b, Wi-Fi (CE/FCC) certificated

Description

Introducing the NUC-EHL Compact Computing System by Avalue – a powerhouse in a small package. Designed for efficiency and versatility, this compact system is perfect for space-constrained environments, offering robust performance with Intel processors. Ideal for both industrial and consumer applications, the NUC-EHL boasts advanced connectivity options, seamless integration capabilities, and superior reliability. Whether you're building a smart home setup or enhancing your business operations, the NUC-EHL delivers exceptional computing power in a sleek, compact design.



Download

More Information

Brand Avalue Technology Inc
Specifications



Category Details
System Information
Processor Intel® Celeron® Processor J6412, 1.5M Cache, up to 2.60 GHz
System Memory 1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz
I/O Chipset EC ITE IT5571VG
BIOS Information AMI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step
H/W Status Monitor Monitoring CPU Temperature, Voltage with Auto Throttling Control
TPM TPM2.0
SBC NCM-EHL
Expansion
M.2 1 x M.2 Key-B 2242/3042 with Internal SIM Slot (PCIe, USB 2.0)
  1 x M.2 Key-E 2230 (PCIe, USB 2.0)
Storage
M.2 1 x M.2 Key-B, 2242 (SATA3)
MicroSD Card 1 x Micro SD card slot
Front I/O
USB 2 x USB 2.0
Power Button 1 x Power On/Off w/ LED
COM Port 1 x RS232/422/485 (BIOS)
Audio 1 x Line-Out, 1 x Mic-In
Rear I/O
USB 4 x USB 3.2 Gen.2 (10Gbp/s)
COM Port 1 x RS232/422/485 (BIOS)
LED Indicator 1 x Power on/off LED, 1 x Storage Access LED
LAN Port 2 x RJ45
HDMI 2 x HDMI 2.0b
AC/DC Input 1 x Lockable DC Jack
Right I/O
Antenna 2 x Antenna Mounting with Dust Protection Cover
Left I/O
Antenna 2 x Antenna Mounting with Dust Protection Cover
  1 x Micro-SD Card Slot
Display
Graphic Chipset Intel® UHD Graphics for 10th Gen Intel® Processors
Resolution 2 x HDMI 2.0b: 4096x2304@60Hz
Audio
Audio Codec RealTek ALC888S
Ethernet
LAN Chipset 2 x Intel® I225-LM
Specification 10/100/1000/2.5 Gigabit
Power Requirement
ACPI Single power ATX Support S0, S3, S4, S5, ACPI 5.0 Compliant
Power Mode AT/ATX (ATX is default setting)
Adapter Input: 100 ~ 240Vdc/ 50 ~ 60Hz, Output: 12V/5A AC-DC 60W Adapter
Software Support
OS Win10, Win11, Linux
Certification
Certification Information CE, FCC Class B, UKCA, Wi-Fi 6E RF certified
Mechanical & Environmental
Operating Temp. With extended temperature peripherals: 0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temp. -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H) 170mm x 125mm x 36mm (6.69” x 4.92” x 1.42”)
Vibration Test With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test With SSD: 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces
IP Rating 40
Mounting Kit Table Stand (Default), Din Rail/VESA (Optional)
Kensington Lock 1 x Kensington Lock
Ordering Information
Ordering Information NUC-EHL-J12-A1-1R: Intel® Celeron® J6412 Fanless NUC Slim System

Ordering Information

NUC-EHL-J12-A1-1R:Intel® Celeron® J6412 Fanless NUC Slim System
