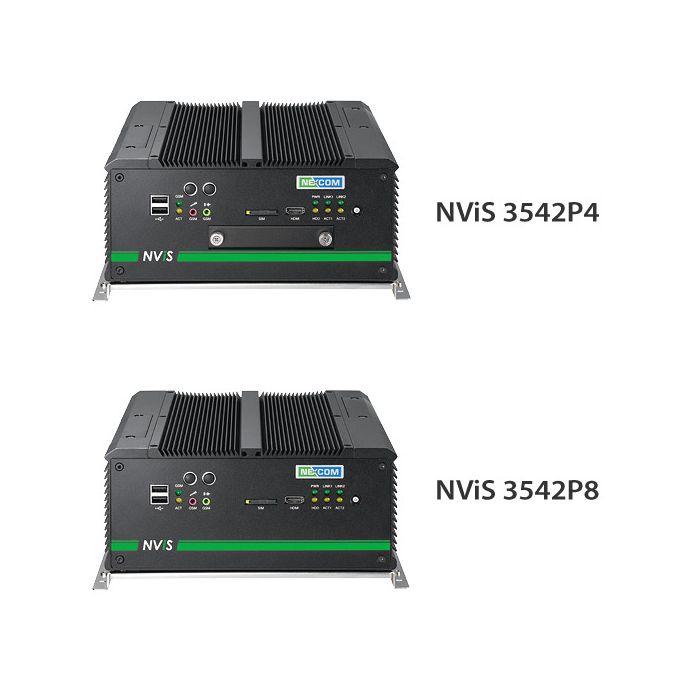

NViS 3542P4/3542P8

In stock
NViS 3542P4/3542P8

Model Code: NViS 3542P4/P8

- Support Intelᆴ Coreル i7/ i5 Socket Processor
- 4 x PoE (3542P4) / 8 x PoE (3542P8)
- Support 3G/ Wi-Fi/ GPS communication

Enquire Now
Enquire about this product:

Main Board

On-board Mobile Intel® QM57 Platform Controller Hub Support Intel® Core™ i7-620M PGA processor (2.66GHz, 4M cache) Support Intel® Core™ i5-520M PGA processor (2.4GHz, 3M cache)

Main Memory

2 x 240-pin memory DIMM, up to 8GB DDR3 800/1066MHz SDRAM, un-buffered and non-ECC

I/O Interface-Front

ATX power on/off switch HDD access/ power status LEDs Wireless active LEDs

2 x antenna holes

2 x USB2.0 ports

1 x Line-out

1 x Mic-in

1 x HDMI

1 x External SIM card holder

I/O Interface-Rear

2-Pin remote power on/off switch (support power ignition module) 9~30V DC input

1 x PS/2 for keyboard/ mouse

1 x DB15 male connector for GPIO (4 x input and 4 x output)

1 x DB44 serial port for 4x RS232 (COM2: RS232/ 422/ 485 with auto flow control)

2 x GbE LAN ports

4 x USB2.0 ports

1 x DB15 VGA port

1 x DVI-D port

1 x Speaker-out and 1 x Mic-in 4-port PoE (IEEE802.3af-16.8W per port) NViS 3542P4 8-port PoE (IEEE802.3af-16.8W per port) NViS 3542P8


2 x 2.5" HDD driver bay (NViS 3542P4, support 1 x hot-swappable) 2 x 2.5" Internal HDD driver bay (NViS 3542P8)


WAN: through mini-PCIe for optional 3G/ 3.5G/ GSM module WLAN: through mini-PCIe for optional Wi-Fi module (either one) GPS: through internal COM for GPS module


1 x mini-PCIe socket for 3G/Wi-Fi (Depend on SKU# selected)


235mm (W) x 268 mm (D) x 101mm (H)


Aluminum chassis


Operating temperature:

Ambient with air flow: -5°C ~ 55°C


CE approval FCC Class A e13 Mark
