SKU: OFxx-FP30

Signage Size: 65"

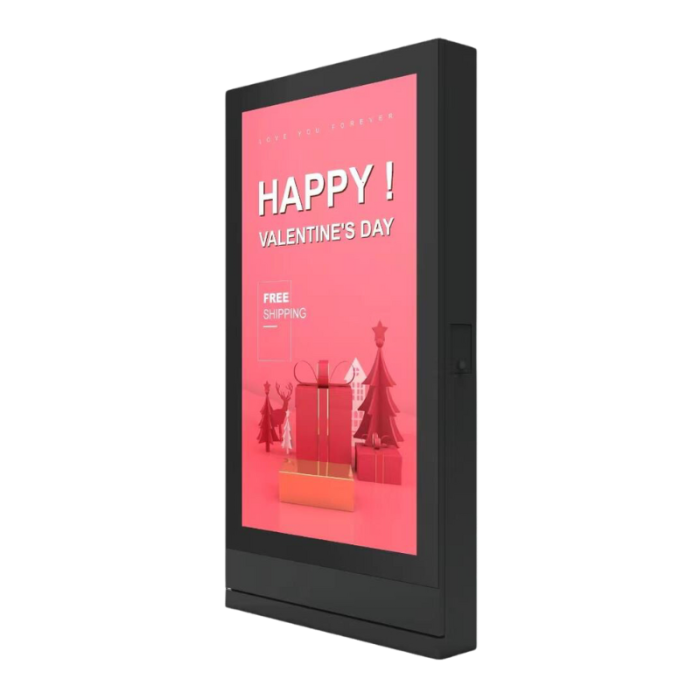

Single Side 3000nits Fan Cooling Outdoor Digital Signage Screen

Key Features:

3000nits UHD Resolution LCD
Multiple Input Source
IP55 Rated Water & Dust Proof
AR Coated Tempered Protection Glass of LCD Screen
Up to 20 ℃℃~ +50 Operating
Industrial Fan Cooling System
Built in Speaker (Optional)
Built in Player (Optional)
Brightness Auto Adjustment with Ambient Light Sensor
Built in Multiple Sensor
Support Remote Sensing & Control via IP

Datasheet

Download

Datasheet

More Information

Brand

BOE

Specifications

Specification	OF55-FP30 / OF65-FP30 / OF75-FP30 / OF86-FP30
Screen Size (Diagonal)	55 inch / 65 inch / 75 inch / 86 inch
Native Resolution	2160 × 3840
Brightness	3000 cd/m²
Contrast Ratio	≥ 1000:1
View Angle	178° (H) / 178° (V)
Lifetime (Light Source)	50,000 Hours
Body Dimension (mm)	2100 × 870 × 185 / 2200 × 1000 × 220 / 2300 × 1150 × 220 / 2450 × 1300 × 240
Weight	TBD
Operating Temp. Range	-20°C to 50°C (OF55/OF65) / -20°C to 45°C (OF75/OF86)
Operating Humidity	10% to 95% RH
Cooling System	Industrial Fan Cooling
Water & Dust Proof	IP55
Screen Protection	AR Tempered Glass
Inputs	HDMI × 2, DP × 1
Outputs	Audio × 1
Control	RS232 (UART) × 1
Remote Sensing Features	Multiple Sensors
Optional Built-in Player	Android 7.1 (AOSP), RK3288 CPU, 2G/32G
Power Supply	AC 200-240V @ 50/60Hz

Ordering Information

OF55-FP30	55" Single Side 3000nits Fan Cooling Outdoor Digital Signage
OF65-FP30	65” Single Side 3000nits Fan Cooling Outdoor Digital Signage
OF75-FP30	75” Single Side 3000nits Fan Cooling Outdoor Digital Signage
OF86-FP30	86” Single Side 3000nits Fan Cooling Outdoor Digital Signage
