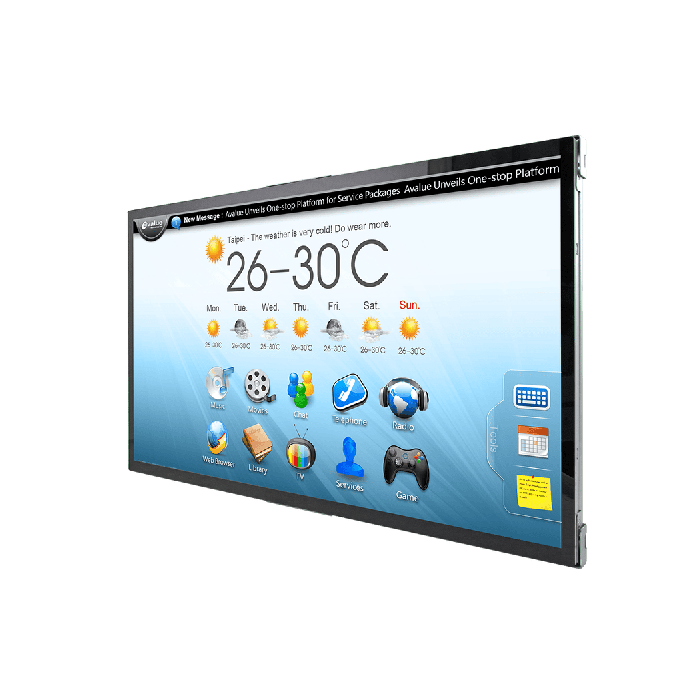

OFP-21W38 21.5” Fanless Open Frame Panel PC with 11th Gen. Intel Core
21.5" Full-HD PCAP Multi-Touch Fanless Open Frame Panel PC with 11th Generation Intel® Core™ i3/i5/i7 Processors
Key Features:
- 21.5” Full-HD open frame panel PC with PCAP touch
- 11th Generation Intel® Core™ i3/i5/i7 Processors
- 1 x M.2 type B 3042/3052/2242/2260/2280 (with 1 x PCI-e x1 (default) or SATA, USB 3.0 with 1 x SIM card slot, support WWAN+GNSS or NVMe SSD
- 2x GbE LAN, 4 x USB 3.0, line-out, mic-in, 1 x COM, DP++, HDMI/DP
- Option for 4 x COM, 3 x USB2.0
- Slim & strength design
- Fanless operation from 0° ~ 45°C
- Wide voltage input +12 ~ 24V DC
Description
Product Overview
The Avalue OFP-21W38 is a 21.5-inch open-frame industrial panel PC, built for OEM and embedded integration in demanding environments. Featuring full-HD resolution, 11th-Generation Intel® Core™ i3/i5/i7 processors, multi-touch PCAP interface and fan-free design, it offers high performance, flexible I/O and rugged reliability for applications such as machine control panels, kiosks, digital signage and HMI systems.
Key Features
High Performance Computing
- Equipped with 11th-Generation Intel® Core™ i3/i5/i7 processors (Tiger Lake-U series)
- Supports dual DDR4 SO-DIMM memory slots (3200 MHz) with up to 64 GB total memory capacity
- M.2 Key-B slot (3042/3052/2242/2260/2280) supports NVMe/SSD/WWAN with SIM-card option
Rugged and Reliable Design
- Fan-free heatsink architecture for silent and maintenance-free operation
- Wide DC power input range (+12 V to +24 V) for flexible industrial power integration
- Operating temperature range from 0 °C to 45 °C, storage from –20 °C to 60 °C
- Open-frame design enables OEM panel-mounting, VESA mounting and integration into machine enclosures
Display and Touch Interface
- 21.5-inch Full HD display (1920 × 1080) with PCAP multi-touch support up to 10 touch-points
- Brightness rated at 500 cd/m², contrast ratio 1000 :1, wide 89° viewing angles in all directions
- True-flat front panel and 16 :9 aspect ratio ideal for modern operator panels or digital signage
Power and Connectivity
- External I/O includes 2× Gigabit LAN, 4× USB 3.0 ports, HDMI/DisplayPort options, line-out and mic-in audio connectors, RS-232/422/485 COM interface
- Internal I/O supports M.2 wireless modules, additional USB or COM expansions, 16-bit GPIO and TPM 2.0 security support
- Slim depth and competitive footprint make it suitable for flush-mounting into kiosks, consoles or machine HMI panels
Certifications and Compliance
- CE and FCC Class A certified for worldwide industrial deployment
- Designed for continuous 24/7 operation in embedded and machine-control environments
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
OFP-21W38-630-A1R
21.5 Full-HD Multi Touch Open Frame Panel PC / Intel Celeron 6305E, 4GR,128GB M.2 SATA,4xUSB3, COM,2xLAN,2xDP++ without adapter
OFP-21W38-111-A1R
21.5 Full-HD Multi Touch Open Frame Panel PC / Intel Core i3, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter
OFP-21W38-114-A1R
21.5 Full-HD Multi Touch Open Frame Panel PC / Intel Core i5, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter
OFP-21W38-118-A1R
21.5 Full-HD Multi Touch Open Frame Panel PC / Intel Core i7, 4GR, 128GB mSATA,4xUSB3,COM,2xLAN,2xDP++ without adapter
ACC-ADP-090N-06R
AC/DC adapter 24V/3.75A PWR DIN Plug
