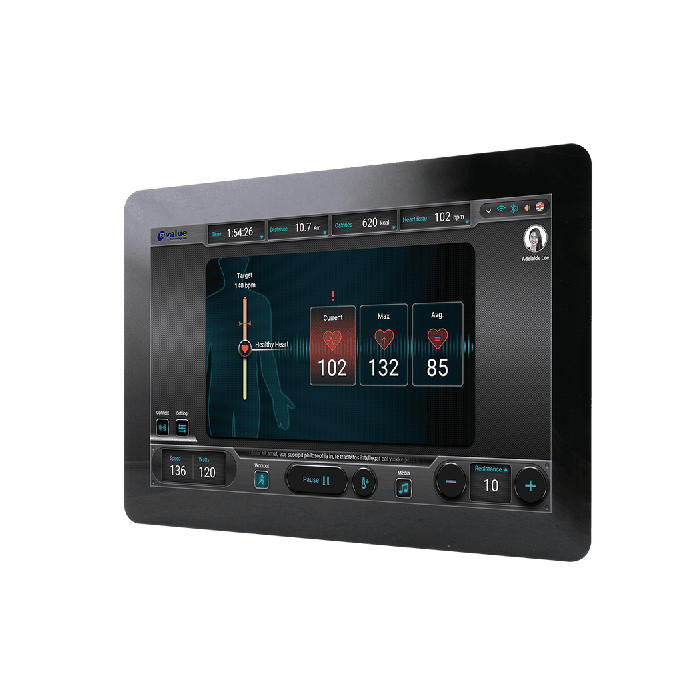

OFT-10W04 10.1" Open Frame Tablet with Celeron J3455
10.1" Open Frame Tablet with Intel® Celeron® Processor J3455
Key Features:
- 10.1" 800 x 1280 Open Frame Tablet with PCAP touch
- Intel® Celeron® Processor J3455
- 1 x 204-pin SO-DIMM DDR3L 4GB (8GB for BOM Option)
- 32GB eMMC / 1 x M.2 B Key for SSD
- Fanless operation from 0°C ~ 40°C
- Wide voltage input +12 ~ 24VDC
Description
Product Overview
The Avalue OFT-10W04 is a 10.1-inch open-frame industrial panel PC designed for easy OEM integration in kiosks, machine panels, digital signage, factory HMIs and other embedded applications. Featuring a compact form factor, fan-free design and a high-resolution display it offers reliable performance for industrial environments. With support for Intel® Celeron® J3455 processing, wide I/O options and wide input voltage range the OFT-10W04 delivers flexibility for industrial deployments.
Key Features
Compact Performance
-
Intel Celeron J3455 quad-core processor (1.50 GHz)
-
4 GB system memory (DDR3L) and 32 GB eMMC storage
-
Supports Windows 10 (64-bit) and Ubuntu Linux
Reliable Design
-
Fanless operation ensures silent, maintenance-free use
-
Operating temperature range from 0 °C to 40 °C, storage from -20 °C to 60 °C
-
Open-frame aluminium chassis allows flush mounting into custom enclosures
Display and Touch Interface
-
10.1-inch TFT display with WXGA resolution (800 × 1280)
-
Luminance 350 cd/m², contrast ratio 1000 : 1; multi-touch projected-capacitive (PCAP) screen
-
Slim depth (approx. 41.6 mm) and weight of around 1.3 kg
Power and Connectivity
-
Wide input voltage range DC 12 V to 24 V for industrial power systems
-
External I/O includes HDMI output, RJ45 Gigabit LAN, USB 3.0 ports, headphone jack and power button
-
Internal I/O includes M.2 B-Key slot (3042), micro-SD, micro-SIM, RS-232/RS-485, GPIO and MIPI display interface
Certifications and Compliance
-
CE and FCC Class A certified
-
RoHS-compliant and built for 24/7 operation in embedded environments
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc |
|---|---|
| Specifications |
Product Specifications System Information Processor: Intel® Celeron® J3455 Display LCD Size: 10.1″ TFT Panel Graphics & Audio Graphics Chipset: Intel® HD Graphics 500 Networking LAN Chipset: Realtek RTL8211FI-CG Power DC Input: +12 V ~ +24 V Software Support Operating Systems: Windows 10 / Ubuntu 20.04 Certification Compliance: CE, FCC Class A External I/O USB Ports: 2 × USB 3.0 Internal I/O USB: 1 × Micro USB
GPIO: 16-bit GPIO Wireless Communication Wi-Fi: Optional 802.11 a/b/g/n/ac Mechanical & Environmental Operating Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F) |
Ordering Information
OFT-10W04-3412-A1R
OFT-10W04-4G_32G
