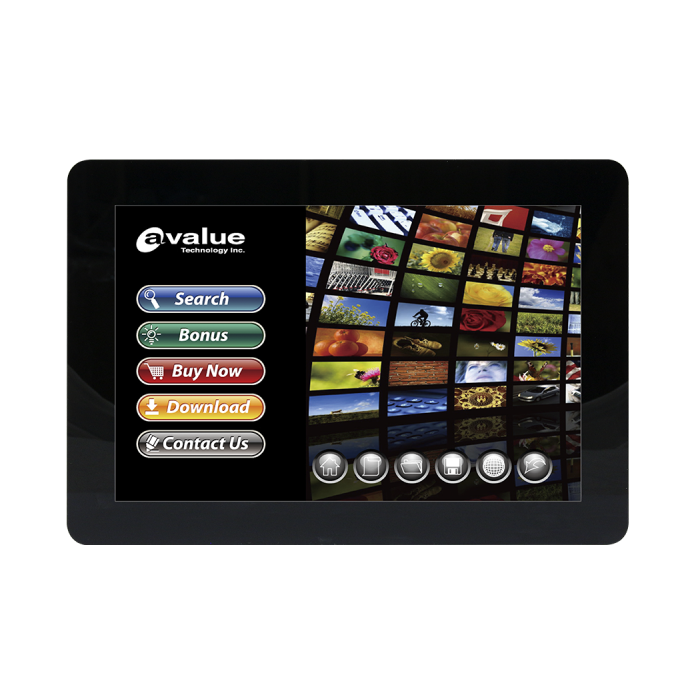

OFT-10WR3 10.1" Fanless Open Frame Tablet with Rockchip RK3568J
10.1" 1280 x 800 Open Frame Tablet with PCAP touch
Key Features:
- Rockchip RK3568J Quad-Core Cortex-A55 1.8GHz
- 4GB LPDDR4 / 64GB eMMC
- Dual Gigabit Ethernet
- Fanless operation from -30°C ~ +60°C
- Support Android 13, Debian 11
Description
The Avalue OFT-10WR3 is a 10.1-inch open-frame industrial panel PC designed for demanding environments. It features a Rockchip RK3568J quad-core Cortex-A55 processor running at 1.8GHz, 4GB of LPDDR4 memory, and 64GB of eMMC storage. The device supports both Android 13 and Debian 11 operating systems. Its 1280 x 800 resolution display offers 500 cd/m² brightness and a projected capacitive (PCAP) multi-touch interface. Connectivity options include dual Gigabit Ethernet ports, HDMI 2.0 output, USB 3.0 and USB 2.0 ports, multiple serial interfaces, and an M.2 Key B slot for SSD or LTE modules. The OFT-10WR3 operates fanlessly within a temperature range of -30°C to +60°C and supports a wide DC input range of 12V to 24V. Optional features include Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.0.
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
OFT-10WR3-68-A1-1R, 10.1", OFT 4G RAM, 64G eMMC, Android 13
OFT-10WR3-68-A1-2R, 10.1", OFT 4G RAM, 64G eMMC, Android 13. 1000nits
Need something specific?
We build to order.
We can customise any solutions according to your specifications. Click below to learn more
and contact us.
