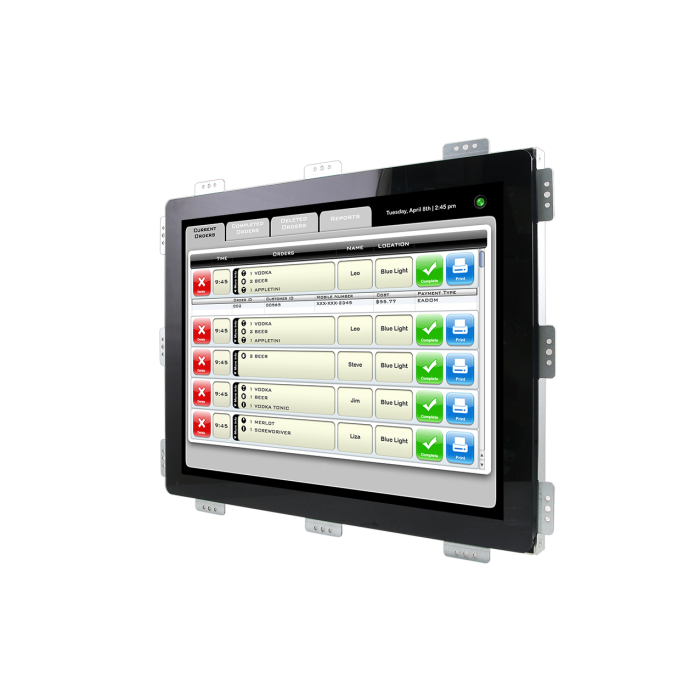

OFT-1502 15" Open Frame Tablet with Atom x5-Z8350

Product Overview

The Avalue OFT-1502 is a 15-inch open-frame industrial panel PC / tablet designed for embedded and space-constrained installations. Powered by the Intel Atom x5-Z8350 processor with 2 GB RAM and 32 GB eMMC storage as standard, it features a 1024 × 768 resolution PCAP touch display and wide input voltage support (12 V to 24 V DC). Built for industrial OEM integration, it offers flexible I/O, reliable operation and a compact open-frame footprint.

Key Features

Compact Performance

• Intel Atom x5-Z8350 quad-core processor

• 2 GB LPDDR3 memory; 32 GB eMMC storage

• Windows 10 IoT (64-bit) or other embedded OS options

Rugged and Reliable Design

• Fanless architecture for silent and maintenance-free operation

• Wide DC input range: 12 V to 24 V

• Operating temperature range 0 °C to 40 °C; storage -10 °C to 60 °C

• Open-frame tablet-style chassis for OEM integration

Display and Touch Interface

• 15-inch TFT panel with 1024 × 768 resolution

• Projected-capacitive (PCAP) multi-touch interface

• Typical brightness ~250 cd/m², contrast ratio ~700:1, viewing angles approx. 80° in all directions

Power and Connectivity

• External I/O includes: 1× HDMI, 1× Gigabit LAN (10/100/1000), 1× DB9 COM port (RS-232), micro-SD slot, DC jack input

• Internal I/O includes mini-PCIe interface, SIM slot, USB 2.0, and audio interface

• Compact dimensions and a metal housing suitable for embedded use

Certifications and Compliance

• CE and FCC Class B certified for industrial deployment

• Designed for 24/7 embedded and HMI applications

Applications

• OEM machine-control tablets in factory automation

• Industrial kiosks, digital signage nodes and self-service panels

• Embedded operator terminals where space is limited and reliable performance is required

• Edge client installations requiring integrated touch display and embedded OS
