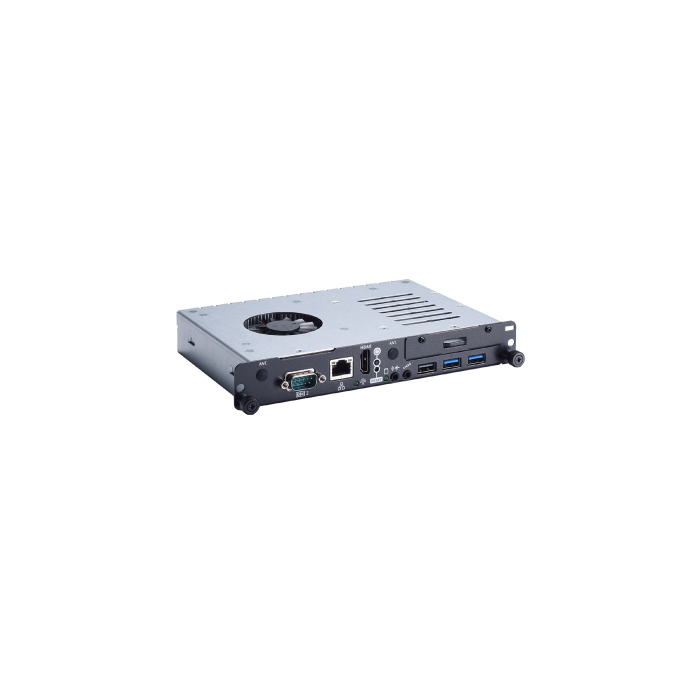

Shop OPS500-501-H OPS Signage Player

SKU: OPS500-501-H

Open Pluggable Specification (OPS) Digital Signage Player with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and Intel® H110

Datasheet

Description

Open Pluggable Specification (OPS) Digital Signage Player with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor and Intel® H110

· Intel® Open Pluggable Specification (OPS compliance)

· 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake/Skylake)

· DDR4-2133/2400 SO-DIMM for up to 16GB of memory

· 1 PCI Express Mini Card slot

· HDMI for 2nd ultra HD display with 4K @ 60Hz resolution

· Easy installation and maintenance

Data sheet

User Manual

Brand

Axiomtek

Specifications

CPU	LGA1151 socket 7th/6th generation Intel® Core™ and Celeron® processors
Chipset	Intel® H110
System Memory	7th generation Intel® Core™: 1 x 260-pin DDR4-2133/2400 SO-DIMM, up to 16GB 6th generation Intel® Core™: 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x RS-232
USB	2 x USB 3.0 1 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i219-LM)
Display	1 x HDMI 1.4b with 4K resolution
Audio	1 x Audio (Line-out & Mic-in)
JAE Connector	1 x DisplayPort 1 x HDMI 2.0 2 x USB 2.0 1 x USB 3.0 1 x Audio (Line-out) 1 x UART (TX/RX)
HRS Connector	N/A
Wi-Fi	802.11 b/g/n (optional)
Storage	1 x 2.5" SATA HDD tray 1 x mSATA (optional)
Expansion	1 x Full-size PCI Express Mini Card (USB + PCI Express + SATA Signal)
Power Supply	1 x 12 VDC power input (adapter available by option)
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	0°C to +45°C (+32°F to +113°F) (with airflow 1.2m/s)
Dimensions (W x D x H)	200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
Weight (net/gross)	1 kg (2.21lb)/ 1.5 kg (3.3 lb)
Certifications	CE
