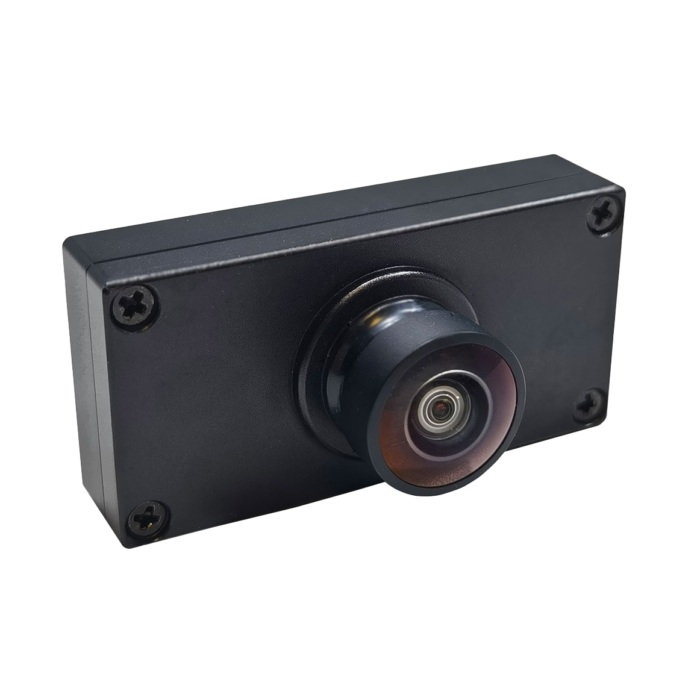

'Owl' IP65 Maxim GMSL 2 2.3MP Imaging Camera
IP65 Maxim GMSL 2 Camera
Key Features:
- ON Semiconductor CMOS Image Sensor AR0234CS
- Color Sensor
- GMSL2 Serializer
- GMSL2 Serial Coax Interface with PoC
- Certification FCC, CE
- Lens: FOV H 202.0°± 3°
- Active Pixel: 1920 (H) x 1200 (V)
- Frame Rate: 120 fps @ full resolution
- Pixel Size: 3.0 x 3.0 μm
- Power Supply Range: 9 ~ 19 VDC
- Focusing Distance: 50cm (lens is glued)
Description
The LI-AR0234CS-GMSL2-OWL is equipped with ON Semiconductor CMOS 2.3MP digital image sensor AR0234CS, capable of producing clear, low-noise images in both low-light and bright scenes. This camera outputs 1920 x 1200 RAW data.
Download
More Information
| Brand | Leopard Imaging | |||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
