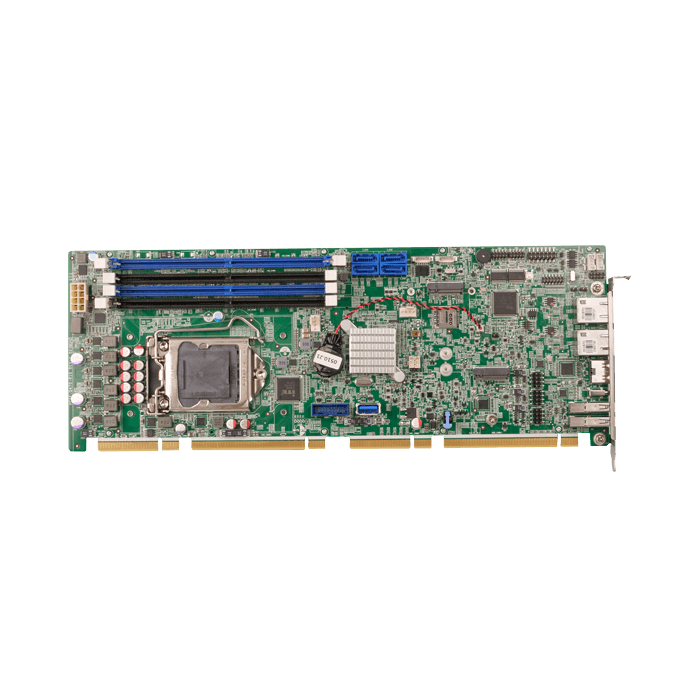

PCIE-Q470 Full-size PICMG 1.3 10th/11th Gen CPU

In stock
SKU:
PCIE-Q470-R10
Brand: IEI Integration Corp.

Full-size PICMG 1.3 CPU Card i9/i7/i5/i3Pent/Celeron, DDR4, HDMI, Dual 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Full-size PICMG 1.3 CPU Card that supports LGA1200 Intel 10th/11th Gen. Core i9/i7/i5/i3, Pentium, Celeron CPU with Q470/Q470E, DDR4, HDMI, Dual Intel 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS.

Key Features:

  • LGA1200 Intel 10th/11th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
  • Dual Intel i225v 2.5GbE controller
  • USB 3.2 Gen 2 (10Gb/s) with Type C interface
  • Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage, B key for 5G module

Hardware Spec.

Form Factor
Form Factor Full-Size Single Board Computer
System
CPU LGA1200 Intel 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium and Celeron® processor (Support up to 65w)
Chipset Intel Q470/Q470E
Memory 4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
Memory Max. up to 128GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 338 mm x 126 mm
Net Weight 500g
Storage
Storage 4 x SATA: 6Gb/s (Support RAID 0/1/5/10)
  1 x M.2(NGFF) : M Key (2280/2242) (with PCIe Gen3 x4), support NVME storage
I/O Interface
Display Output 1 x HDMI: up to 4096 x [email protected]
Ethernet 2 x LAN:
LAN1: Intel I225V 2.5GbE controller
LAN2: Intel I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 2 x Internal RS-232 : 2x5 pin, P=2.0
  2 x Internal RS-422/485: 1x4 pin, P=2.00, RS-485 support AFC
  2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)
  6 x Internal USB 2.0 : 2x4 pin, P=2.54
  3 x Internal USB 3.2 Gen1x1 :
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin,P=2.00)
1 x USB 3.2 Gen1 (Type A 180°)
  DIO : 12-bit digital I/O (2x7 pin)
  1 x External USB 3.2 Gen2x1 : 10Gb/s (Type-C)
Expansion 1 x PCIe x16 :
signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
  1 x PCIe x4: signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
  4 x PCI Slot: signal via golden finger
  3 x M.2(NGFF):
1 x M.2 A Key (2230) (with PCIe Gen3 x2/USB 2.0)
1 x M.2 B Key(3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)
Power
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

PCIE-Q470-R10 Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q470E, DDR4, HDMI, Type-C DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS

Package Contents

Package Content
  • 1 x PCIE-Q470 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
