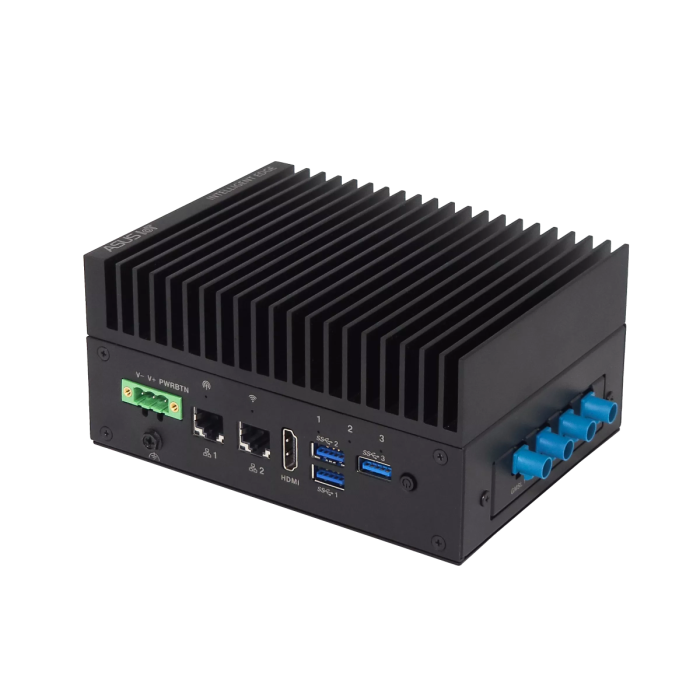

PE1102N Rugged Edge AI PC with NVIDIA Jetson Orin NX/Nano

Product Overview

The ASUS PE1102N is a rugged fanless edge AI computer powered by the NVIDIA Jetson Orin NX and Jetson Orin Nano platforms. Designed for autonomous vehicles, robotics, industrial automation, smart city systems and video surveillance, it supports up to four GMSL2 cameras for real-time video transmission. With compact dimensions, wide range DC input, ignition power control, optional wireless expansion and MIL-STD-810H testing, the PE1102N is suited to demanding edge deployments that require reliable AI processing in space-constrained environments.

Key Features

NVIDIA Jetson Orin Platform

• Supports Jetson Orin NX 16GB, Orin NX 8GB, Orin Nano 8GB and Orin Nano 4GB modules

• Up to 8 x Arm Cortex-A78AE CPU cores, depending on configuration

• NVIDIA Ampere GPU with up to 1024 CUDA cores and 32 Tensor Cores

• Up to 16 GB LPDDR5 memory, depending on the selected module

• Supports NVDLA acceleration on compatible Orin NX configurations

GMSL2 Camera Support

• Supports up to four GMSL2 camera connections

• FAKRA connectors for real-time video transmission

• Designed for multi-camera AI vision applications

• Suitable for autonomous vehicles, robotics, AMR and surveillance systems

Compact Fanless Design

• Fanless enclosure for quiet and reliable operation

• Compact system footprint for space-limited installations

• Rugged design for vehicle, robotics and industrial environments

• MIL-STD-810H tested for harsh operating conditions

Industrial I/O Connectivity

• 2 x Gigabit Ethernet RJ45 ports

• 3 x USB 3.2 Gen 1 Type-A ports

• 1 x USB 2.0 Micro-USB port for OS flash

• 2 x internal USB 2.0 pin headers

• 2 x RS-232/422/485 ports

• 1 x CAN bus port

• 4 x isolated DI and 4 x isolated DO

Display and System Interface

• 1 x HDMI 1.4a output supporting up to 3840 × 2160 at 30 Hz

• 1 x HDMI 2.0b output supporting up to 3840 × 2160 at 60 Hz

• Debug console via Micro-USB

• Onboard TPM 2.0 security

• Hardware watchdog timer support

• Ubuntu Desktop operating system support

Wireless and Storage Expansion

• M.2 M Key 2242/2260/2280 slot for PCIe SSD storage

• M.2 E Key 2230 slot for optional WiFi and Bluetooth

• M.2 B Key 3042/3052 slot for optional 4G or 5G cellular module

• 2 x nano SIM slots

• Optional GPS support

• 1 x ASUS Expansion Module slot for LAN, GMSL or OOB expansion

Wide Range Power Input

• 12 V to 36 VDC power input

• 3-pin terminal block power connector

• Built-in ignition power control

• Suitable for vehicle and mobile system integration

• An optional 65 W power adapter is available

Rugged Environmental Support

• Operating temperature from -20°C to 60°C

• Storage temperature from -40°C to 85°C

• 10% to 95% relative humidity, non-condensing

• Wall mount installation support

• DIN rail clip assembly support

Applications and Use Cases

The PE1102N is suitable for:

• Autonomous vehicles and robotics

• AMR and mobile robot systems

• Industrial automation and inspection

• Smart city edge AI applications

• Video surveillance and analytics

• Machine vision systems

• Sensor fusion and AI camera deployments



Dimensions/Drawings
