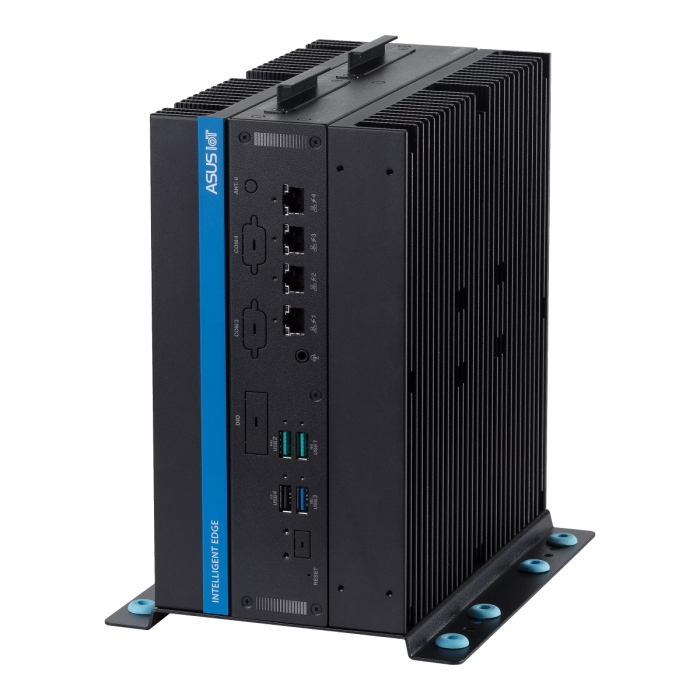

PE3000G Rugged Fanless Edge AI Computer with MXM GPU

Product Overview

The ASUS PE3000G is a rugged fanless edge AI computer designed for computer vision, intelligent transportation, autonomous vehicles, industrial automation and smart city applications. Powered by 12th Gen Intel Core processors and supporting NVIDIA Ampere, NVIDIA Turing or Intel Arc A-series MXM GPU modules, it provides strong AI inference and image processing performance in a compact industrial platform. With up to 64 GB DDR5 memory, multiple display outputs, 3 x 2.5GbE LAN, optional PoE+, hot swappable storage, wide range DC input and MIL-STD-810H shock and vibration resistance, the PE3000G is built for demanding edge deployments.

Key Features

12th Gen Intel Core Platform

• Supports Intel Core i7-12800HE, i5-12600HE and i3-12300HE processors

• 45 W CPU platform for high performance edge applications

• Up to 14 cores depending on CPU configuration

• Intel Iris Xe or Intel UHD integrated graphics depending on processor

• Supports Intel vPro and AMT on compatible configurations

MXM GPU Expansion

• Supports NVIDIA Ampere, NVIDIA Turing and Intel Arc A-series MXM GPU options

• Designed for AI inference, image processing and computer vision workloads

• MXM PCIe x8 Gen4 slot for GPU module integration

• Optional MXM GPU enables up to four additional DisplayPort outputs

• Suitable for demanding edge AI and vision based applications

DDR5 Memory and Storage

• 2 x SO-DIMM slots

• Supports up to 64 GB DDR5 4800 memory

• 2 x hot swappable 2.5 inch SATA trays for HDD or SSD installation

• RAID 0 and RAID 1 support for 2.5 inch SATA drives

• 1 x M.2 2280 M Key NVMe socket with PCIe Gen4 x4 support

Multi Display Output

• 2 x HDMI 1.4 outputs supporting up to 4096 × 2304 at 30 Hz

• 2 x DP++ outputs supporting up to 4096 × 2304 at 60 Hz

• 4 x DisplayPort outputs supported through optional MXM GPU module

• Supports up to eight display outputs depending on GPU configuration

• Suitable for vision systems, monitoring stations and multi display applications

High Speed Networking and PoE

• 3 x Intel I226-IT 2.5GbE RJ45 ports with screw lock

• 1 x Intel I219-LM 1GbE RJ45 port with screw lock

• Optional IEEE 802.3at PoE+ PSE support

• Up to 100 W total PoE power budget across four ports

• Suitable for IP cameras, sensors and industrial network devices

Industrial I/O Connectivity

• 3 x USB 3.2 Gen2 Type-A ports with screw lock

• 1 x USB 2.0 Type-A port with screw lock

• Mic-in and line-out audio ports

• 2 x RS-232/422/485 DB9 ports

• Optional 2 x RS-232 or 2 port CAN bus module

• Optional isolated 4DI and 4DO support

Wireless and Expansion Support

• 1 x full size Mini PCIe socket for cellular module expansion

• 1 x M.2 2230 E Key slot for selected WiFi 5 or WiFi 6 modules

• 1 x M.2 3042/3052 B Key slot with SIM support for 4G or 5G modules

• Designed for connected edge AI, vehicle and remote monitoring deployments

Rugged Fanless Design

• Fanless thermal design for reliable operation without moving parts

• Patented system architecture and dual side heatsink design

• Operating temperature from -20°C to 60°C with 60 W MXM GPU and 45 W CPU

• Storage temperature from -40°C to 85°C

• MIL-STD-810H vibration and shock tested

• Withstands 5 Grms vibration

Wide Range Power Input

• 8 V to 48 VDC wide range power input

• 3-pin pluggable terminal block power connector

• Built-in ignition power control

• Header for remote power button

• Optional 330 W or 480 W power supply support

• Suitable for vehicle, industrial and remote field power environments

Applications and Use Cases

The PE3000G is suitable for:

• Computer vision systems

• Intelligent transportation

• Autonomous vehicle applications

• Smart city edge AI deployments

• Industrial automation and inspection

• Video analytics and surveillance

• Smart healthcare and medical imaging

• Multi display AI and monitoring systems
