PICO313 - Pentium N4200/Celeron N3350 CPU

In stock
SKU:
PICO313 - Pentium N4200/Celeron N3350 CPU
Brand: Axiomtek

Category: Single Board Computers

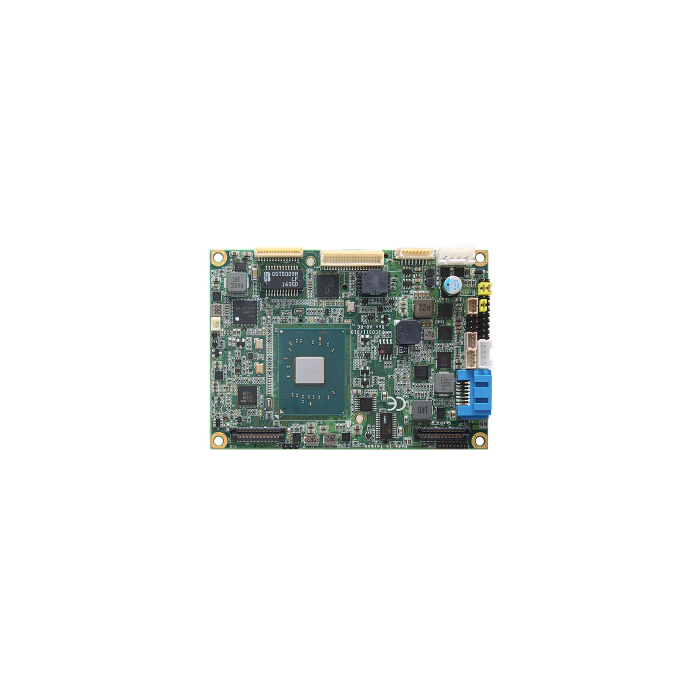

Pico-ITX SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, LVDS and LAN


Enquire Now
Enquire about this product:

Intel® Pentium® processor N4200 and Celeron® processor N3350

1 DDR3L SO-DIMM, up to 8GB

1 USB 2.0 port

2 PCI Express Mini Card slots


This product is listed in Digital Signage, Industrial Automation, Mining, Transport, Axiomtek, Embedded Boards
CPU
  • Intel® Pentium® N4200 and Celeron® N3350 processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS
  • AMI
COM
  • N/A
USB
  • 1 x USB 2.0
Ethernet
  • 1 x10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x LVDS
Digital I/O
  • 4-channel in/out programmable
Audio
  • N/A
Storage
  • 1 x SATA-600
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA supported
  • 1 x Half-size PCI Express Mini Card
  • 1 x PCIe x1, 1 x LPC, 1 x DDI, 4 x USB 3.0,1 x HD audio and 1 x SMBus (through expansion connector)
Others
  • TPM 1.2
Battery
  • Lithium 3V/220mAH
Power Input
  • 1 x 4 pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Pentium® N4200 @8GB DDR3L
    Max. RMS. +12V @ 1.6A
  • Intel® Celeron® N3350 @8GB DDR3L
    Max. RMS. +12V @ 1.4A
Watchdog Timer
  • 65535 levels, 1 ~ 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
