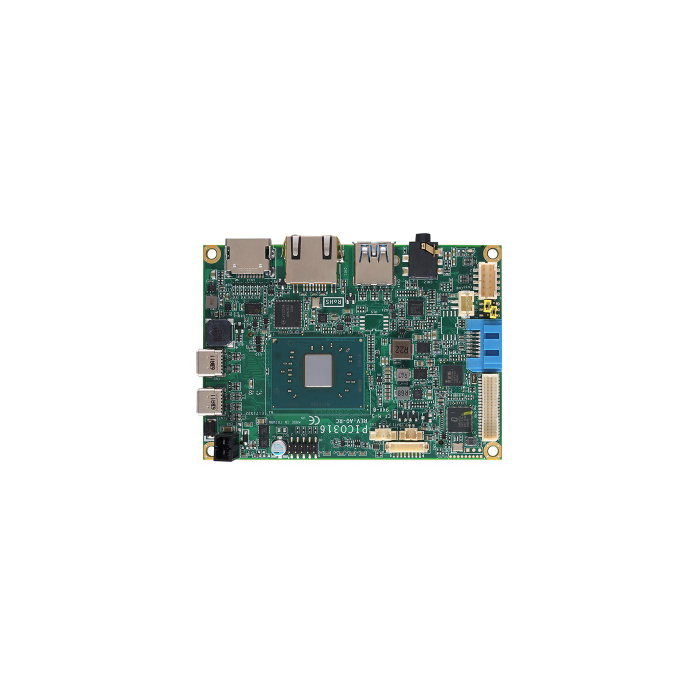

Shop PICO316 Pico-ITX SBC Pentium/Celeron

SKU: PICO316HGA

Pico-ITX SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350/J3455, LVDS, HDMI, GbE LAN and Audio

Datasheet

Description

Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455

1 DDR3L SO-DIMM for up to 8GB of memory

2 USB 2.0 and 3 USB 3.0

1 PCI Express Mini Card slot with mSATA supported

Data sheet

Brand

Axiomtek

Specifications

CPU	Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455 onboard
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
BIOS	AMI
COM	2 x RS-232
USB	2 x USB 2.0 3 x USB 3.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i211AT)
Display	1 x LVDS 1 x HDMI
Digital I/O	N/A
Audio	HD Codec audio as Line out with Realtek ALC662
Storage	1 x SATA-600
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA supported
Others	I2C
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector +5V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Pentium® N4200 @ 1.1 GHz 8GB DDR3L Max RMS: +5V @ 3.3A Intel® Celeron® N3350 @ 1.1 GHz 8GB DDR3L Max RMS: +5V @ 2.3A Intel® Celeron® J3455 @1.5 GHz 8GB DDR3L Max RMS: +5V @4A
Watchdog Timer	65536 levels, 1 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	Standard: -20°C to +60°C (-4°F to +140°F) Optional: -20°C to +70°C (-4°F to +158°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	100 x 72 mm
Board Thickness	1.6 mm
Certifications	CE
