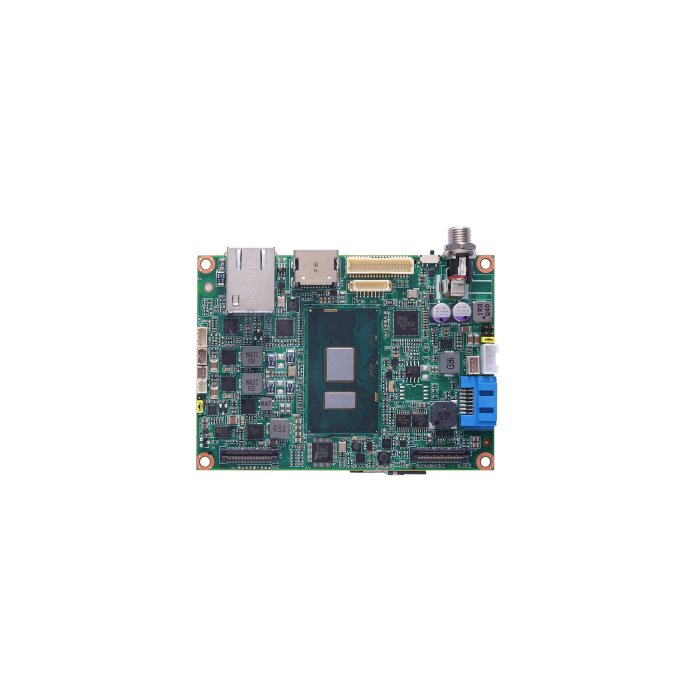

Shop PICO500 Pico-ITX SBC

SKU: PICO500HGA

Pico-ITX SBC with 6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors, HDMI/LVDS, LAN and Audio

Datasheet

Description

6th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Skylake)

1 DDR4 SO-DIMM, up to 16GB

1 USB 2.0 and 1 Gigabit LAN ports

PCI Express Mini Card with mSATA supported

Intel® AMT 11 supported

AXView 2.0 intelligent remote management software

Data sheet

Brand

Axiomtek

Specifications

CPU	6th generation Intel® Core™ i7/i5/i3 & Celeron® processors onboard (Skylake)
Chipset	SoC integrated
System Memory	1 x 260-pin SO-DIMM DDR4-2133, up to 16 GB
BIOS	AMI
COM	N/A
USB	1 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i219LM)
Display	1 x LVDS 1 x HDMI
Digital I/O	N/A
Audio	MIC-in/Line-out
Storage	1 x SATA-600
Expansion	1 x Full-Size PCI Express Mini Card with mSATA 1 x PCIe x1, 2 x UART, 1 x DDI, 4 x USB 3.0, and 1 x HD audio (through expansion connector)
Others	Intel® AMT 11
Battery	Lithium 3 V/220 mAH
Power Input	DC power jack connector +12V DC-in only AT Auto Power On function supported
Power Requirements	Intel® Core™ i7-6600U @ 2.6 GHz, 16GB DDR4 Max. RMS. +12V @ 2.3A Intel® Core™ i5-6300U @2.4 GHz, 16 GB DDR4 Max. RMS. +12V @ 2.2A Intel® Core™ i3-6100U @ 2.3 GHz, 16GB DDR4 Max. RMS. +12V @ 1.9A Intel® Celeron® 3955U @ 2 GHz, 16GB DDR4 Max. RMS. +12V @ 1.7A
Watchdog Timer	255 levels, 1~255 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	100 x 72 mm
Board Thickness	1.6 mm
Certifications	CE
