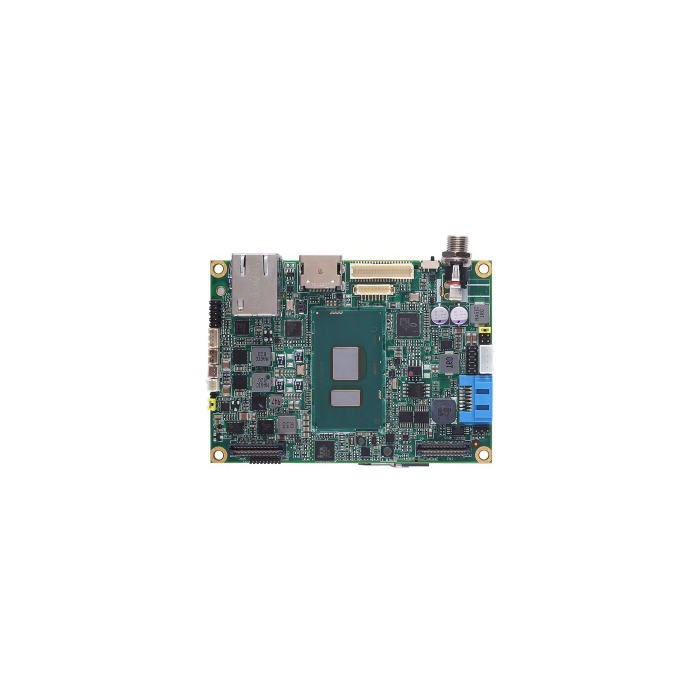

PICO512 - 7th gen CPU ITX SBC

SKU: PICO512 - 7th gen CPU ITX SBC

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, HDMI/LVDS and LAN

Description

7th Gen Intel® Core™ i7/i5/i3 and Celeron® processor

1 DDR4 SO-DIMM, up to 16GB

1 PCI Express Mini Card slot

Intel® AMT 11 supported

Download

More Information

Brand Axiomtek
Specifications
CPU
  • 7th generation Intel® i7/i5/i3 & Celeron® processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB
BIOS
  • AMI
COM
  • N/A
USB
  • 1 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i219LM)
Display
  • 1 x HDMI
  • 1 x LVDS
Digital I/O
  • 8-channel in/out programmable
Audio
  • N/A
Storage
  • 1 x SATA-600
Expansion
  • 1 x full-Size PCI Express Mini Card slot with mSATA
  • 1 x PCIe x1, 1 x LPC, 1 x DDI, 4 x USB3.0,1 x HD audio and 1 x SMBus (through expansion connector)
Others
  • TPM1.2
  • I2C
  • SMBus
Battery
  • Lithium 3V/220mAH
Power Input
  • DC Jack
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • i7-7600U: +12V @ 2.5A
  • i5-7300U: +12V @ 2.4A
  • i3-7100U: +12V @ 2.2A
  • Celeron®-3965U: +12V @ 1.7A
Watchdog Timer
  • 65535 levels, 1 ~ 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ +158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
