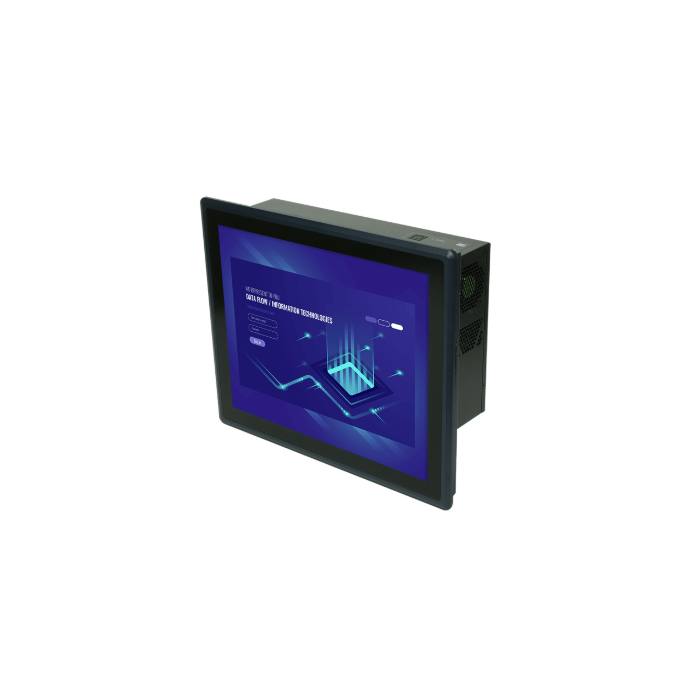

PPC-F17C-Q370 17" Panel PC

End of Life
IEI Integration Corp.
SKU: PPC-F17C-Q370

17" 350cd/m² 1280 x 1024 AI modular Panel PC, 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor, TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU

Datasheet

Description

17” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor

Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10

Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots

Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support

QTS-Gateway support

Download

Data sheet

More Information

Brand IEI Integration Corp.
Specifications
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 350
Contrast Ratio 800:1
LCD Size 17”
Max Resolution 1280x1024
Environment
Humidity 5% ~95%, non-condensing
IP Level IP66 compliant front panel
Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor)
-20°C ~ 40°C (with HDD or add-on cards without fan)
Safety & EMC CE, FCC, CCC
Storage Temperature -30°C ~ 60°C
Expansion Slots
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
Form factor
Form factor 8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
Intel® 300 Series Chipsets Q370
I/O Interface
Ethernet Intel® I211AT Ethernet controllers
Other Features
TPM Support(2x10pin, P=2.54mm)
Physical Characteristics
Color Front frame: Cyan-blue (PSM 296C); Others: Black C
Cutout Dimensions 391x324
Dimensions (LxWxH) (mm) 409x342x119
Mounting Panel/Rack mount
Net Weight 8.4
Power
Power Supply AC input ATX power supply
1. 250 W power supply
- Input: 115VAC~230VAC, 50/60Hz
- Output (max.): 3.3V@12A, 5V@14A, 12V@25A, [email protected],+5Vsb@3A
2. 350 W power supply (Build to Order)
- Input: 115VAC~264VAC, 50/60Hz
- Output (max.): 3.3V@14A, 5V@16A, 12V@29A, [email protected],+5Vsb@3A
- Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
Storage
Storage 4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10)
2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD
System
Chipset Intel® 300 Series Chipsets Q370
Cooling method / System Fan System fan
CPU 8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU
Memory Max. Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB)
Touch
Touch Controller EETI EXC3188
Touch Screen 10-point Projected capacitive touch window, 6H
(Anti-UV, Anti-glare Surface)
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x HDMI
2 x LAN
1 x Line out
1 x Mic
1 x Power Switch
1 x Reset Button
2 x RS-232
6 x USB 3.0
