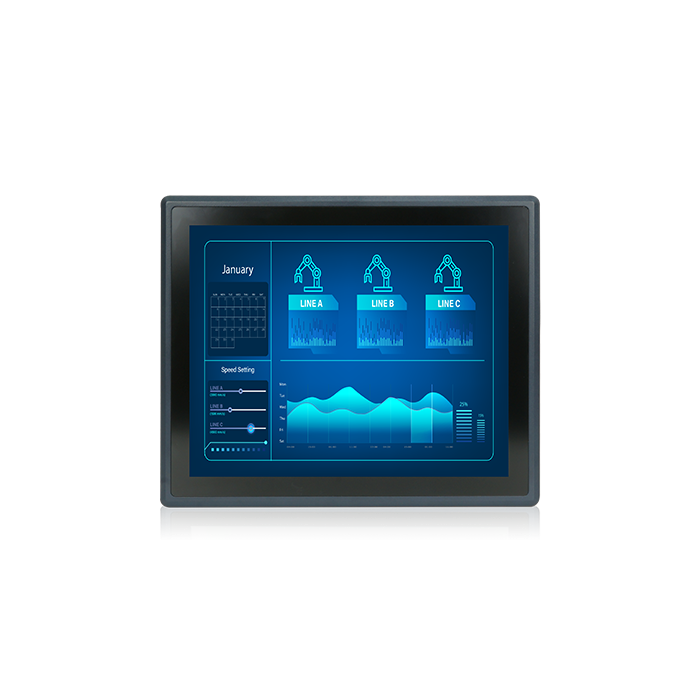

PPC-F17D-ULT5 - 17" 8th Gen Core i IP66 Panel PC

In stock
Brand: IEI Integration Corp.

17" IP66 8th Gen Fanless Panel PC

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

17” Panel PC with 8th gen Intel® Whiskey Lake-U processors
Low power consumption and fanless design
IP66-rated front panel for water and dust resistance
Touch screen with anti-UV / anti-glare coating
Support PoE PD power
Support NVMe SSD
LCD Size 17”
Brightness(cd/m2) 350
Max Resolution 1280 x 1024
Contrast Ratio 1000:1
Backlight MTBF(hrs) 50000
Cooling method / System Fan Fanless
CPU 8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz
Chipset Intel® Whiskey Lake-U
Memory Ext. 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM
Memory Max. 32GB
Storage 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
I/O Interface
Ethernet 2x Intel® I211
1x Intel® I219
Audio Codec ALC888S
Input +12VDC
Power adapter 12V @ 8A(96W)
Power consumption 66W
Operating Temperature -10°C ~ 50°C (with air flow)
Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Operating Shock 10G acceleration part to part (11ms)
Safety & EMC CE, FCC
Humidity 10% ~ 95% (non-condensing)
Storage Temperature -20°C ~ 60°C
IP Level Front panel IP66
Physical Characteristics
Color PANTONE 296 C
Mounting Wall mount, Panel mount, Rack mount
Dimensions (LxWxH) (mm) 408.4 x 341.4 x 75.6
Net Weight 6.7kg
Construction Front Panel Aluminum
Cutout Dimensions 391 x 324
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD)
LCD Color 16.7M
Pixel Pitch (mm) 0.26 x 0.26
Viewing Angle (H-V) 170°/160°
Touch Screen PCAP 10-point
Touch Controller EETI
Other Features
TPM TPM 2.0(Optional)
I/O Interface
I/O Interface 1 x AT/ATX Switch
  1 x Clear CMOS
  1 x DC Input Jack(12V Din 4Pin/lock)
  1 x HDMI
  3 x LAN(2 x Support PoE(IEEE 802.3at/bt, optional))
  1 x Line out
  1 x Power Switch(with LDE(Blue))
  1 x Reset Button
  2 x RS-232(1 x RS-232/422/485, 1 x RS-232)
  4 x USB 3.2 Gen2x1
We build to order
