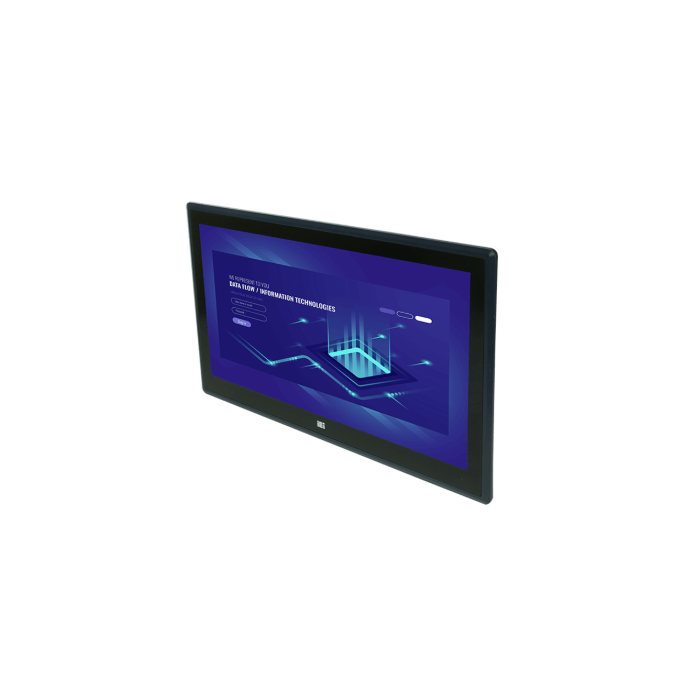

PPC-FW24C-Q370 - 23.8" 8th gen LGA1151 CPU

In stock
PPC-FW24C-Q370 - 23.8" 8th gen LGA1151 CPU
Brand: IEI Integration Corp.

23.8" 250cd/m² 1920 x 1080 AI modular Panel PC, 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor, TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

23.8” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor

Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10

Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots

Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support

QTS-Gateway support

Spec Item Description
Backlight MTBF(hrs) 30000
Brightness(cd/m2) 250
Contrast Ratio 3000:1
LCD Size 23.8”
Max Resolution 1920x1080
Humidity 5% ~95%, non-condensing
IP Level IP66 compliant front panel
Operating Temperature 0°C ~ 50°C (with SSD and TDP 65W processor)
0°C ~ 40°C (with HDD or add-on cards without fan)
Safety & EMC CE, FCC, CCC
Storage Temperature -20°C ~ 60°C
Expansion Slots
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
Form factor
Form factor 8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
Intel® 300 Series Chipsets Q370
I/O Interface
Ethernet Intel® I211AT Ethernet controllers
Other Features
TPM Support(2x10pin, P=2.54mm)
Physical Characteristics
Color Front frame: Cyan-blue (PSM 296C); Others: Black C
Cutout Dimensions 577.6x359.6
Dimensions (LxWxH) (mm) 600x382x119
Mounting Panel/Rack mount
Net Weight 12
Power Supply AC input ATX power supply
1. 250 W power supply
- Input: 115VAC~230VAC, 50/60Hz
- Output (max.): [email protected], [email protected], [email protected], [email protected],[email protected]
2. 350 W power supply (Build to Order)
- Input: 115VAC~264VAC, 50/60Hz
- Output (max.): [email protected], [email protected], [email protected], [email protected],[email protected]
- Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
Storage 4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10)
2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD
Chipset Intel® 300 Series Chipsets Q370
Cooling method / System Fan System fan
CPU 8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU
Memory Max. Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB)
Touch Controller EETI EXC3188
Touch Screen 10-point Projected capacitive touch window, 6H
(Anti-UV, Anti-glare Surface)
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x HDMI
2 x LAN
1 x Line out
1 x Mic
1 x Power Switch
1 x Reset Button
2 x RS-232
6 x USB 3.0


We build to order
