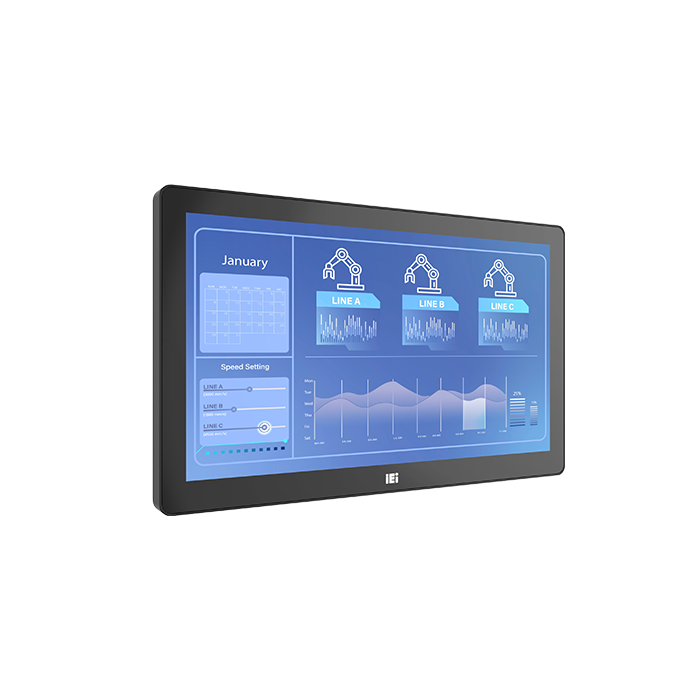

PPC2-CW133-EHL 13.3” Fanless Panel PC with Celeron J6412

In stock

SKU:

PPC2-CW133-EHL

Brand: IEI Integration Corp.

13.3” Fanless Panel PC with Intel Celeron Processor J6412

Key Features:

Enquire Now

Enquire about this product:

Name

Phone

Message

13.3” Fanless Panel PC with Intel Celeron Processor J6412

Key Features:

This product is listed in Industrial Automation, IEI Integration Corp.

System
Cooling method / System Fan	Fanless
CPU	Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10w
On-board Memory	8GB dual-channel on-board LPDDR4x
Storage	1 x 2.5” HDD/SSD drive bay
I/O Interface
Ethernet	2 x 2.5GbE LAN via Intel I225-V
Expansion	1 x M.2 2242/2280 B key (PCIe Gen3 x1 + USB 3.0) 1 x M.2 2242 M key (PCIe Gen3 x2)
Environment
Operating Temperature	-10°C ~ 60°C
Safety & EMC	CE, FCC Class A
Humidity	10% ~ 95%@40°C, non-condensing
Storage Temperature	-20°C ~ 60°C
Physical Characteristics
Color	Black
Mounting	VESA 75/100 Panel, Wall, Rack, Stand and Arm
LCD
Size	13.3”
Resolution	1920 x1080 (16:10)
Brightness (cd/m2)	400
Contrast Ratio	800:1
LCD Color	16.7M
Pixel Pitch (mm)	0.153 x 0.153
Viewing Angle (H-V)	170°/170°
Backlight MTBF	50,000 hours
Touch
Touch Screen	Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: ≧7H
Touch Controller	EETI 8X
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x Clear CMOS Button
	1 x DC Input Jack
	1 x HDMI™ (up to 3840*2160 @30Hz)
	2 x LAN
	2 x Power In - 1 x 12V-24V DC jack 1 x Power terminal block (2-pin)
	1 x Power Switch
	1 x Reset Button
	2 x RS-232 (by DB9)
	1 x RS-232/422/485
	4 x USB 2.0
	2 x USB 3.2 Gen2x1 (10Gb/s(Type A))

PPC2-CW133-EHL-J1/8G-R10	13.3” 350 cd/cm² 1920x1080 Fanless Panel PC with Intel® Celeron® Processor J6412, TDP 10W, 8GB LPDDR4x on-board, HDMI™ output, black, 12-24V DC input, projected capacitive touchscreen with AG, R10

Package Content	1 x PPC2-CW133-EHL 1 x Power Cord 1 x Power Adapter 1 x Panel Mount Kit 1 x QIG 1 x Screw Pack
