In stock
Brand: IEI Integration Corp.

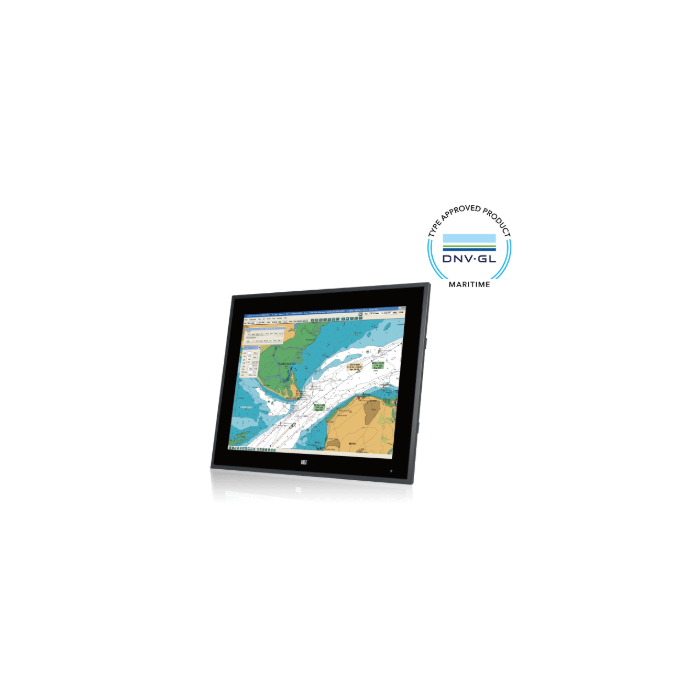

19” Fanless Panel PC with 4th Generation Intel® Core™ i5 Dual-core Processor

Enquire Now
Enquire about this product:

19” Fanless Panel PC with 4th Generation Intel® Core™ i5 Dual-core Processor


● -15°C ~ +55°C Wide Temperature and IP66 Protection with Flat-bezel Projected Capacitive Touchscreen

● Excellent Visual Performance

- Three independent displays

- Full OSD function configuration

- 0% ~ 100% full range dimming

- 178°/178° wide viewing angles

- Optical bonding improves visibility under bright light (optional)

● Isolation Protection

- RS-232/422/485 isolated serial ports

- Isolated 18V ~ 36V DC input

- 2 x Isolated CAN-bus 2.0B

● iRIS Remote Management Module

This product is listed in Mining, Transport, IEI Integration Corp., Mobile Computing
Spec Item Description
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 300
Contrast Ratio 2000 : 1
LCD Size 19"
Max Resolution 1280(W) x 1024(H)
Humidity 10% to 95% (non-condensing)
Operating Temperature -15°C~55°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches DVI-D Signal Input: 2 x DVI (24-pin, female)
VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN*
Composite Video Input: 1 x BNC connector (female)
RAM 4GB 1600MHz DDR3 SDRAM (2GB*2)
Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB
LCD Color 16.7M
Pixel Pitch (mm) 0.294mm x 0.294mm
Viewing Angle (H-V) 178° / 178°
Physical Characteristics
Cutout Dimensions 576 mm x 358 mm
Dimensions (LxWxH) (mm) 592 mm x 374 mm x 113 mm
Chipset Intel® QM87
CPU Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor
HDD 1 x 2.5" SATA HDD bay
Touch Controller 6H
Touch Screen EXC7920 (10-point)
Weight 13.03Kg
I/O Interface
I/O Interface 2 x LAN(RJ-45 for Gbe)
1 x Line in
1 x Line out
1 x Mic
1 x PS/2
1 x Power Switch
1 x RS-232((non-isolated))
4 x RS-422/485((2.5 kv isolation protection))
2 x USB2.0
2 x USB3.0
1 x HDMI
1 x DVI-D
1 x Power In(Isolated 18-36V DC terminal block)
2 x CAN-bus(terminal block)
2 x Antenna SMA((reserved))
1 x VGA
