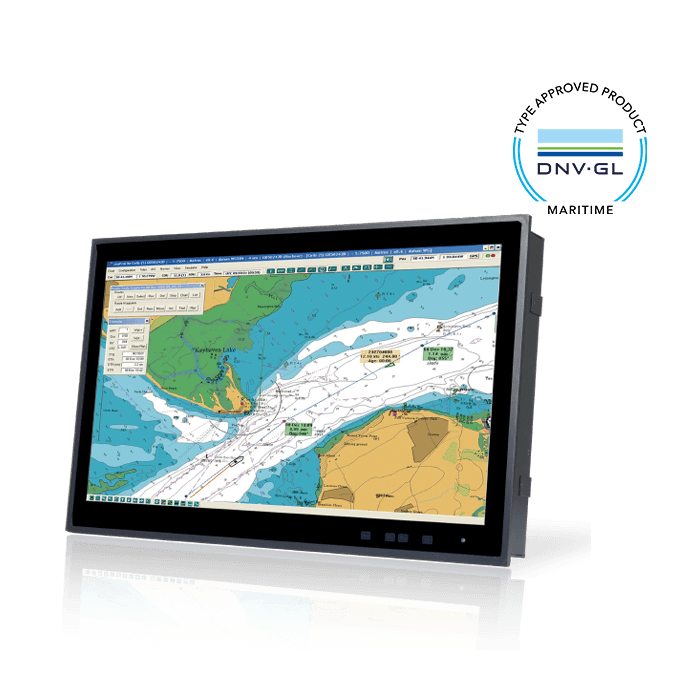

S24M, 24" PCAP touch with AC/DC redundant power

In stock
SKU:
S24M
Brand: IEI Integration Corp.

24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10


Enquire Now
Enquire about this product:

24" FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10



  • IP66 Front / IP22 Rear
  • -15°C ~ +55°C Wide Temperature and Flat-bezel Projected Capacitive Touchscreen
  • Excellent Visual Performance
    • Full OSD function configuration
    • 0%~100% full range dimming
    • 178°/178° wide viewing angles
  • Multiple Video Input
    • Two VGA, two DVI, and one BNC
  • Multiple Video Output
    • One VGA and one BNC
  • Dual Isolated AC/DC Input with Redundant Power Protection
  • Remote OSD Settings through LAN, RS-232, RS-422 and RS-485



This product is listed in Digital Signage, Industrial Automation, IEI Integration Corp., Industrial Monitors
Spec Item Description
Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 300
Contrast Ratio 5000 : 1
LCD Size 24"
Max Resolution 1920(W) x 1080(H)
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -15°C~55°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches DVI-D Signal Input: 2 x DVI (24-pin, female)
VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN*
Composite Video Input: 1 x BNC connector (female)
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.3075mm x 0.3075mm
Viewing Angle (H-V) 178° / 178°
Physical Characteristics
Cutout Dimensions 576 mm x 358 mm
Dimensions (LxWxH) (mm) 592 mm x 374 mm x 113 mm
Touch
Touch Controller 6H
Touch Screen EXC7200 (2-point)
Weight
Weight 11.48 Kg
I/O Interface
I/O Interface 1 x LAN(RJ-45)
2 x Power In(100)
1 x RS-422/485
1 x Touchscreen(UUSB Type A connector (female))
2 x BNC(Input/Output)
1 x Buzzer
3 x VGA(Input x 2/Output x 1)
2 x DVI-D
