SSD230S 2.5" SATA III 6Gb/s

In stock
SKU:
TSXXXXSSD230S
Brand: Transcend

2.5" SSDs SATA III 6Gb/s SSD230S


Enquire Now
Enquire about this product:

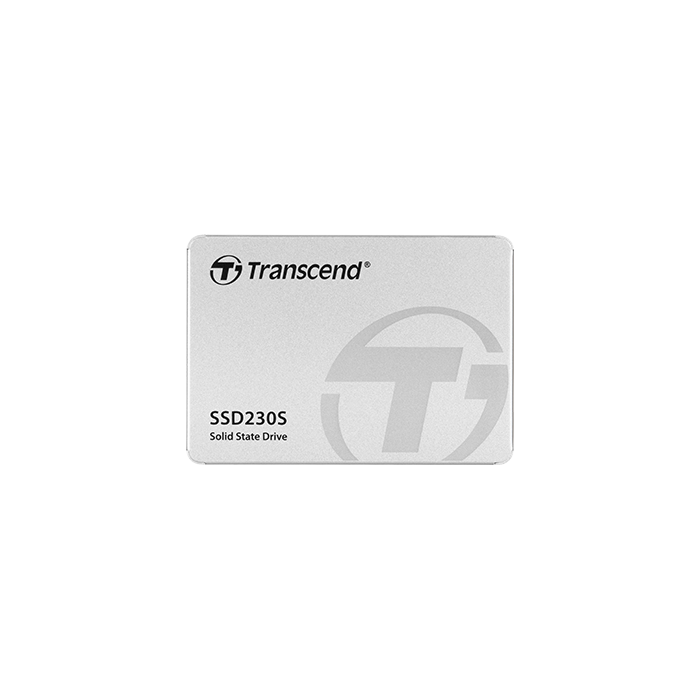

main product photo
We build to order

128 GB / 256 GB / 512 GB / 1 TB / 2 TB / 4 TB

Using the most recent 3D NAND technology with vertical, layered expansion of storage cells, Transcend's SATA III 6Gb/s SSD230S can transfer data at speeds of up to 230 MB/s. The SSD230S offers improved firmware algorithms, higher-quality flash memory, and increased performance.

3D expansion to break through limits

3D NAND flash, in contrast to planar NAND memory, has memory cells stacked vertically in numerous layers. 3D NAND provides a better level of performance and endurance by overcoming the density restrictions of 2D planar NAND.

Performance boost for everyday computing

Transcend's SSD230S delivers excellent transfer speeds of up to 560MB/s read and 520MB/s write by fully using the SATA III 6Gb/s interface and integrated SLC caching technology.

Guaranteed endurance and reliability

The SSD230S from Transcend has excellent Terabytes Written (TBW) figures (up to 2,240 TB), which measure the maximum amount of data that can be written into the drive over its lifetime.


This product is listed in Industries, Partners, Digital Signage, Industrial Automation, Gaming, Mining, Medical, Transport, Transcend
Specifications

Appearance
Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")
Weight 53 g (1.87 oz)

Storage
Flash Type
  • 3D NAND flash
Capacity
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB/
  • 2 TB/
  • 4 TB

Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
  • 5V±5%

Performance
Sequential Read/Write (CrystalDiskMark) - by capacity 2.5" SSD
  • 4 TB
    up to 560/520 MB/s
    •
  • 2 TB
    up to 560/520 MB/s
    •
  • 1 TB
    up to 560/500 MB/s
    •
  • 512 GB
    up to 560/500 MB/s
    •
  • 256 GB
    up to 530/400 MB/s
    •
  • 128 GB
    up to 560/380 MB/s
4K Random Read/Write (IOmeter) - by capacity 2.5" SSD
  • 4 TB
    up to 90,000/85,000 IOPS
    •
  • 2 TB
    up to 85,000/89,000 IOPS
    •
  • 1 TB
    up to 85,000/85,000 IOPS
    •
  • 512 GB
    up to 65,000/85,000 IOPS
    •
  • 256 GB
    up to 65,000/85,000 IOPS
    •
  • 128 GB
    up to 35,000/70,000 IOPS
Terabytes Written (TBW) - by capacity 2.5" SSD
  • 4 TB
    2,240 TBW
    •
  • 2 TB
    1,120 TBW
    •
  • 1 TB
    560 TBW
    •
  • 512 GB
    280 TBW
    •
  • 256 GB
    140 TBW
    •
  • 128 GB
    70 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.3 (5 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.
  • For Mac users please visit our Apple Solutions here.

Warranty
Certificate
  • CE/
  • FCC/
  • BSMI/
  • KC/
  • RCM/
  • UKCA
Warranty
  • Five-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

Package
Package Contents
  • Full unit

System Requirement
Operating System
  • Microsoft Windows 7 or later
  • Linux Kernel 2.6.31 or later

Technology
TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
DevSleep Mode
RAID Engine
LDPC Coding
