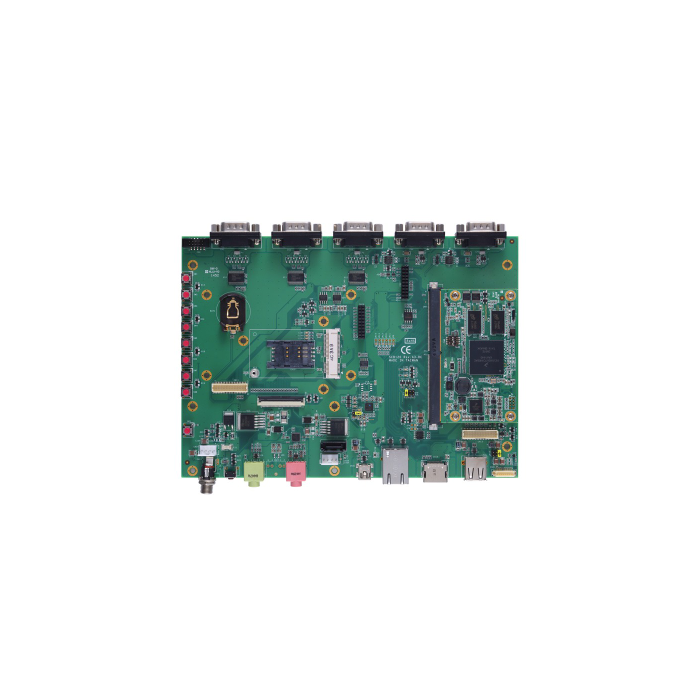

SCM120-120-EVK - SMARC 1.0 Cortex-A9

In stock
SKU:
SCM120-120-EVK - SMARC 1.0 Cortex-A9
Brand: Axiomtek

Category: Single Board Computers

SMARC v1.0 SoM Evaluation Kit with Quad/DualLite 800 MHz (Industrial) SoC,1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio, CAN, MIPI and PCAM

Enquire Now

Please fill in your details below, we will get back to you as soon as possible

Ultra low power consumption Cortex™-A9

2 CAN 2.0B

24-bit TTL LCD

LVDS/HDMI 1080P

10/100/1000 Mbps Ethernet

Open GL ES2.0

Linux3.0.35/Android 4.3

Audio

Single board computers, Industrial computers

CPU
  • Freescale i.MX6 Quad/DualLite ARM Cortex™-A9 CPU 800 MHz (On SCM120 SoM)
Chipset
  • SoC Integrated
System Memory
  • Onboard DDR3-1600, up to 1GB (on SCM120 SoM)
OS
  • Linux kernel 3.0.35
  • Android 4.3
COM
  • 1 x COM with TX/RX/RTS/CTS
  • 1 x Console port
USB
  • 2 x USB 2.0
  • 1 OTG client and 1 Host
Ethernet
  • 1 x 10/100/1000 Mbps
Display
  • 1 x HDMI 1080P
  • 1 x Dual channel 24-bit LVDS
  • 1 x 24-bit TTL LCD
CAN
  • 2 x CANBus 2.0B
I2C
  • 4 x I2C
SPI
  • Yes
GPIO
  • N/A
Audio
  • 1 x Audio (MIC-in)
Storage
  • 1 x SD/MMC socket
  • 1 x SATA connector
Expansion
  • 1 x Full size PCI Express Mini Card (with SIM)
  • 1 x connector with I2C/SPI/UART
Others
  • 1 x Serial camera
  • 8-button detect circuit keypad
Battery
  • Battery on the Baseboard is required
Power Requirement
  • +5V ± 5%, 5A
Operating Temperature
  • N/A
Relative Humidity
  • 10% ~ 95%, non-condensing
Dimensions
  • 200 x 140 mm
Board Thickness
  • 1.6 mm ± 0.15mm
Certifications
  • CE
