Shop SCM180-180-EVK - SMARC 2.0 i.MX8M

End of Life

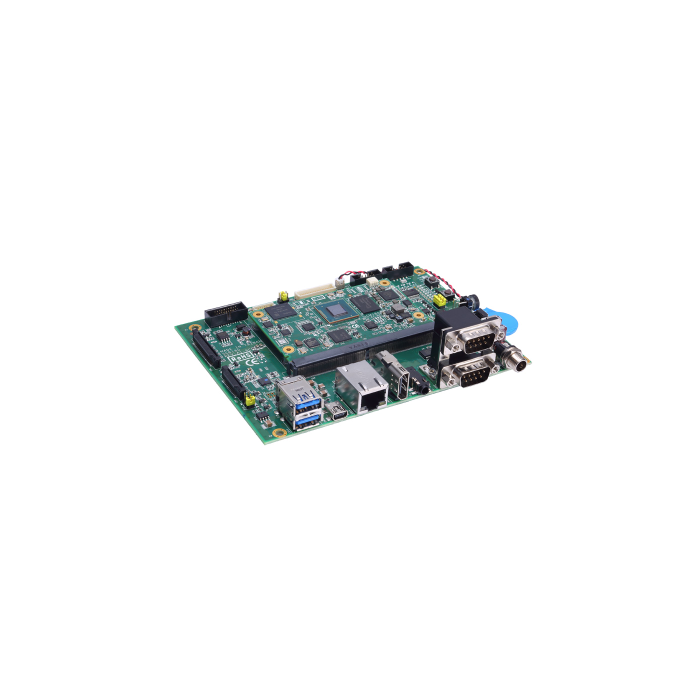

SKU: SCM180-180-EVK - SMARC 2.0 i.MX8M

SMARC v2.0 SoM Evaluation Kit with i.MX8M Quad/Dual 1.5 GHz/1.3 GHz (Industrial) SoC, 4GB Memory, 64GB eMMC, CAN, MIPI CSI/DSI, and HDMI 2.0

Datasheet

Description

Ultra-Low Power i.MX8M Dual/Quad A53 Core

Single M4 Core

HDMI 2.0a up to 4K

Dual Channel LVDS

MIPI CSI

10/100/1000 Mbps Ethernet

USB3.0, USB OTG

PCIe 2.0

CAN 2.0B

Audio

Data sheet

Brand

Axiomtek

Specifications

CPU	Freescale i.MX8M series SoC with Quad/Dual A53
Chipset	SoC integrated
System Memory	Onboard LPDDR4 1GB 3200Mbps, up to 4GB
OS	Linux Kernel, Android
COM	2 x Male DB9 COM port 10P internal COM with RX/TX
USB	2 x USB 3.0 1 x OTG Client 1 x Host
Ethernet	1 x 10/100/1000 Mbps
Display	1 x HDMI 2.0a 1 x Dual channel 24-bit LVDS
CAN	10P Internal connector for 2x CAN 2.0B
I2C	3 x I2C interface
SPI	16 Mbit SPI NOR Flash 256 Mbit QSPI NOR Flash
GPIO	N/A
Audio	1 x Audio (Line-out)
Storage	1 x SD/MMC socket
Expansion	1 x Full size PCI Express Mini Card (with SIM) 1 x Half size PCI Express Mini Card 20-Pin connector with I2C/SPI/GPIO
Others	2 Button-detect Circuit Keypad 2 x MIPI CSI-2 (2 and 4 data lanes) 4-wire touch screen controller
Battery	Battery on Baseboard Required
Power Requirement	+12V ± 5%
Operating Temperature	0°C to +85°C (32°F to +185°F) (commercial) -40°C to +85°C (-40°F to +185°F) (industrial)
Relative Humidity	N/A
Dimensions	146 x 104mm
Board Thickness	1.6mm ± 0.1 mm
Certifications	CE
