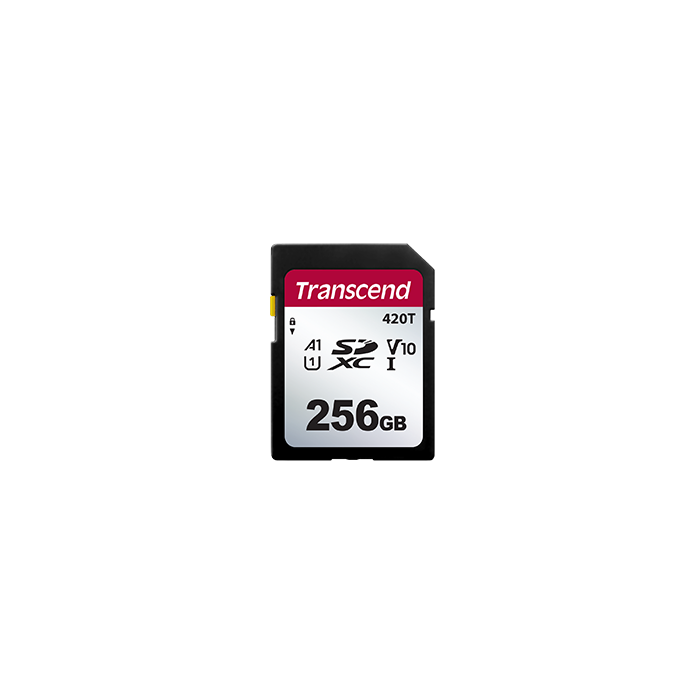

SDC420T SD Card
In stock
SKU:
TSxxxxSDC420T
Brand: Transcend
16GB/32GB/64GB/128GB/256GB SD Card 3D NAND Flash and rated to endure 3K P/E cycles
Enquire Now
Enquire about this product:
Transcend's SDXC/SDHC 420T memory cards combine the benefits of high performance and exceptional endurance at an affordable price, making them ideal for demanding industrial applications such as POS terminals and portable devices equipped with an SD memory card slot. They use top-quality 3D NAND Flash and are rated to endure 3K P/E cycles.
Key Features:
Firmware:
- Built-in ECC (Error Correction Code) functionality
- Early Move
- Wear-Leveling
Hardware:
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 6.1
- Compliant with UHS-I
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
Appearance |
|
| Dimensions | 24 mm x 32 mm x 2.1 mm (0.94" x 1.26" x 0.08") |
|---|---|
| Form Factor |
|
Storage |
|
| Flash Type |
|
| Capacity |
|
Operating Environment |
|
| Operating Voltage |
|
| Drop Test |
|
| Operating Temperature |
|
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 0% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Max.) | 2.88 watt(s) |
Performance |
|
| Read Speed (Max.) | up to 95 MB/s |
| Write Speed (Max.) | up to 40 MB/s |
| Terabytes Written (TBW) | up to 640 TBW |
| Note |
|
