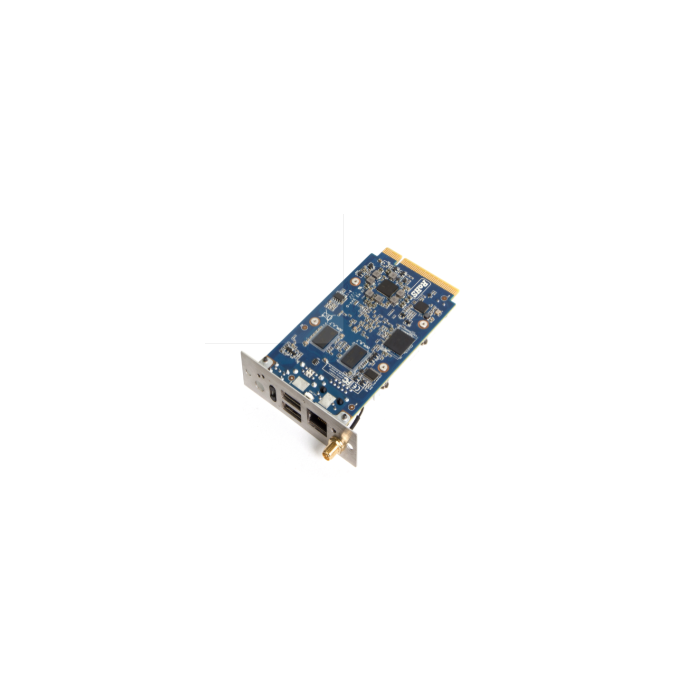

SDM-S - smart display module
In stock
SKU:
SDM-S - smart display module
Brand: Giada Technology Inc.
SDM-S, Intel Atom Cherry Trail Z8350 CPU, DDR3L 2GB, eMMC onboard 32GB, SDM Standard I/O.
Enquire Now
Enquire about this product:
SDM Z8350, a new product of Intel's recently-released SDM-S specification (Intel Smart Display Module), adopts Intel Atom Cherry Trail Z8350 CPU. The module (109mm × 60mm), is roughly the size of a credit card. It can be integrated into IoT applications as it has no housing. The module incorporates high-speed PCIe connectivity with a custom I/O receptacle board that eliminates the need for external I/O. It is optimized for applications like digital signage, public kiosks and professional monitors, point-of-sale, projectors, bedside terminals as well as for the trade and the hospitality industry.
| SDM-S | SDM-S Z8350 | |
| Processor | CPU | Intel® Atom x5-Z8350 |
| Frequency | 1.44GHz (Up to 1.92GHz ) | |
| BIOS | AMI Source Code | |
| Chipset | SOC | |
| Memory | Type | DDR3L-1600MHz |
| Socket | Onboard | |
| Size | 2GB | |
| Graphics | GPU | Intel® HD Graphics 400 |
| Graphic Engine | DirectX11, OpenGL4.0 and OpenCL 1.2 | |
| Main Chip | Network Controller | Realtek RTL8111H Gigabit Ethernet |
| WiFi+BT on Board | RL-SM02BD-8723BS for WiFi+BT | |
| Storage | eMMC | 32GB |
|
SDM I/O (PCIe x8 Edge Connector) |
USB 3.0 | 1 x USB3.0 |
| HDMI | 1 x HDMI(PCIe)(Max.2560 x 1600@24Hz) | |
| DP | 1 x DP(PCIe)(Max.4096 x 2304@60Hz) | |
| Serial Port | 1 x COM | |
| Rear I/O | USB 2.0 | 2 x USB2.0 |
| LAN | 1 x RJ45 | |
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day, A Week as a Cycle | |
| Operation System |
Windows | Windows 8.1/10(64-bit) |
| Linux | Supported | |
| Android | Android 5.1 | |
| Power | Power Type | SDM I/O |
| Input Voltage | 12V/3.3A | |
| Dimensions | Length x Width | 109.9mm x 60mm(4.33"x2.36") |
| Environment |
Storage Temperature | -40 ~ 75℃ ( -40 ~ 167° F ) |
| Operating Temperature | 0℃ ~ 60℃ ( 32 ~ 140° F ) | |
| Relative Humidity | 95%@60℃(non condesing) | |
