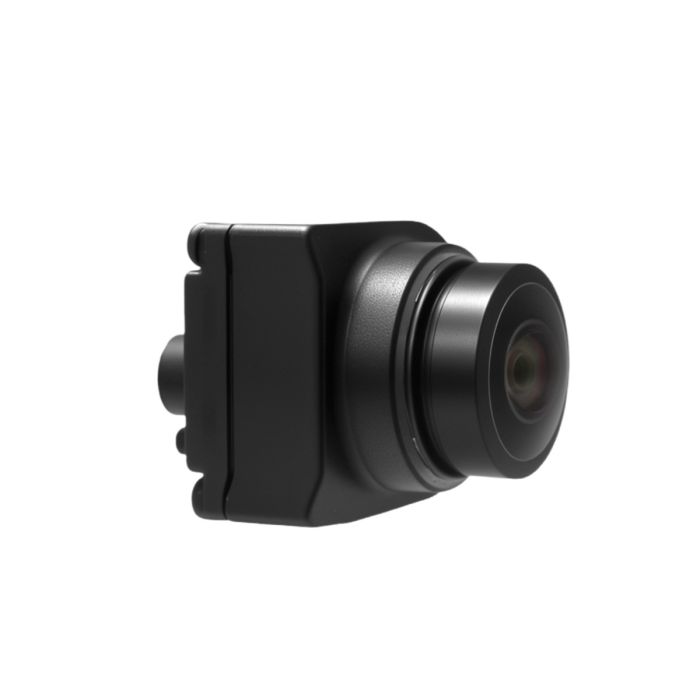

SG3S11AFxK 3MP ISX031 GMSL2 Camera
Approved for use with Nexcom NVIDIA Jetson Orin models
3MP Sony ISX031 camera with GMSL2 connectivity, integrated ISP and IP67 enclosure.
Key Features:
- 3MP Sony ISX031 sensor, 1920 × 1536 at 30fps
- GMSL2 interface with MAX96717F serializer
- Built-in ISP with 8-bit YUV422 output
- Lens options from 30° to 196° horizontal FOV
- Supports multi-camera synchronisation
- IP67 enclosure, −40°C to +85°C operation
- NVIDIA Jetson AGX Thor and Orin platform support
Description
Product Overview
The SENSING SG3S11AFxK is a compact 3MP GMSL2 camera for robotics, automotive and embedded vision applications. Its Sony ISX031 rolling shutter sensor delivers 1920 × 1536 images at 30fps, with built-in image processing and uncompressed YUV422 output. An IP67 enclosure and wide operating temperature range support use in demanding environments.
Key Features
Imaging Performance
-
Sony ISX031 colour sensor with integrated ISP
-
8-bit YUV422 output at full resolution
Rugged Design
-
IP67 protection
-
Operating temperature from −40°C to +85°C
Connectivity and Integration
-
GMSL2 interface with Maxim MAX96717F serializer
-
Multi-camera synchronisation support
-
NVIDIA Jetson AGX Thor and Orin support with suitable hardware and drivers
Lens Options
-
Horizontal fields of view: 30°, 60°, 100°, 118° and 196°
-
Factory-focused, fixed S-mount lens
Compliance
-
Manufacturer lists FCC, CE and RoHS compliance
Download
More Information
| Brand | SENSING | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
|
Manufacturer Part Number / SKU |
Description |
Horizontal FOV |
Vertical FOV |
Focal Length |
|---|---|---|---|---|
|
SG3S11AFCK |
3MP GMSL2 camera, 30° lens |
30° |
24° |
10.96mm |
|
SG3S11AFFK |
3MP GMSL2 camera, 60° lens |
60° |
47° |
5.83mm |
|
SG3S11AFJK |
3MP GMSL2 camera, 100° lens |
100° |
78° |
3.45mm |
|
SG3S11AFLK |
3MP GMSL2 camera, 118° lens |
118° |
92° |
3.00mm |
|
SG3S11AFSK |
3MP GMSL2 camera, 196° lens |
196° |
154° |
1.51mm |
