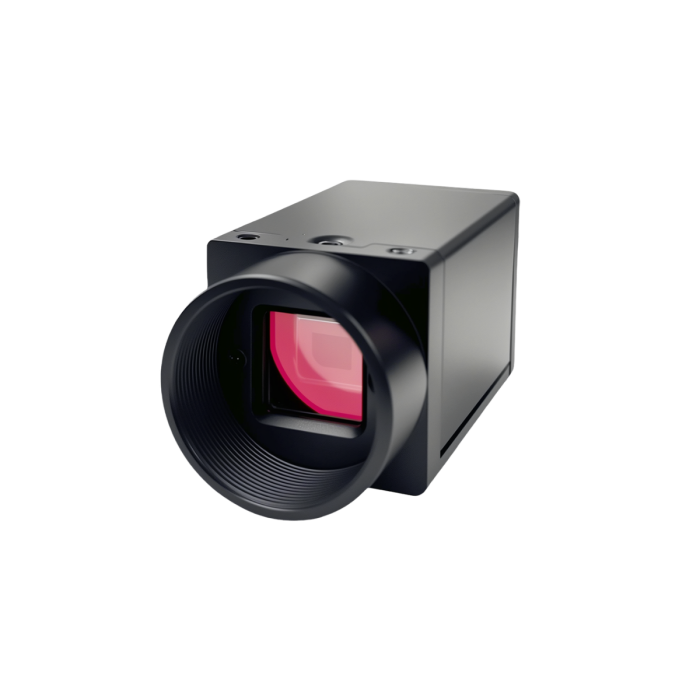

SGigE-E13-S1MC 1.3MP GigE Camera
1.3MP global-shutter monochrome GigE Vision camera for stable, high-speed industrial imaging.
Key Features:
- SmartSens SC130 monochrome sensor
- 1280 x 1024 resolution at up to 94 fps
- Global shutter for motion capture
- GigE Vision with up to 120 MB/s output
- PoE, external trigger and software trigger
Description
Product Overview
The SENSING SGigE-E13-S1MC is a monochrome area-scan GigE camera designed for industrial inspection, measurement and machine-vision applications. Built around the SmartSens 1.3MP SC130 monochrome CMOS, it captures 1280 x 1024 images at up to 94 fps. The global shutter design supports clear capture of moving subjects and fast production processes.
The camera combines Gigabit Ethernet / GigE Vision connectivity with up to 120 MB/s image output, external and software triggering, standard network interface card compatibility and cable runs of up to 100 metres. Support for LabVIEW and HALCON development environments, together with compatibility for NVIDIA Jetson Orin Nano and Orin NX platforms, helps simplify integration into embedded vision, automation and edge-computing systems.
Key Features
Industrial Monochrome Imaging
- SmartSens 1.3MP SC130 monochrome CMOS for monochrome industrial imaging
- 1280 x 1024 image resolution
- Maximum frame rate of 94 fps
- Global shutter capture suited to the intended inspection workload
GigE Vision Connectivity
- Gigabit Ethernet / GigE Vision camera interface
- Image output up to 120 MB/s
- Supports standard network interface cards
- Cable lengths up to 100 metres, with extension possible through network equipment
Trigger and Software Integration
- External trigger support for synchronised image capture
- Software trigger support for application-controlled acquisition
- Compatible with LabVIEW and HALCON vision development software
- Supports NVIDIA Jetson Orin Nano and Orin NX platforms
Compact Industrial Design
- C-mount lens interface for machine-vision optics
- Compact 29 x 29 x 56.1 mm enclosure
- Less than 55 g camera weight
- 0°C to +50°C operating temperature range
Deployment and Configuration
- Power over Ethernet (PoE) support for simplified camera power and data cabling
- Fixed-lens factory configuration is available for deployment-ready installation
- Replaceable-lens requirements should be specified when ordering
- Internal camera calibration can be requested as part of the factory configuration
Applications and Use Cases
The SGigE-E13-S1MC is suitable for:
- Automated quality inspection
- Printed material inspection
- Food processing inspection
- Fluid, wood and metal monitoring
- NVIDIA Jetson-based machine-vision and edge-AI development
Download
More Information
| Brand | SENSING | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Manufacturer Part Number | Description |
|---|---|
| SGigE-E13-S1MC | 1.3MP area scan monochrome GigE camera; confirm lens and calibration requirements when ordering |
