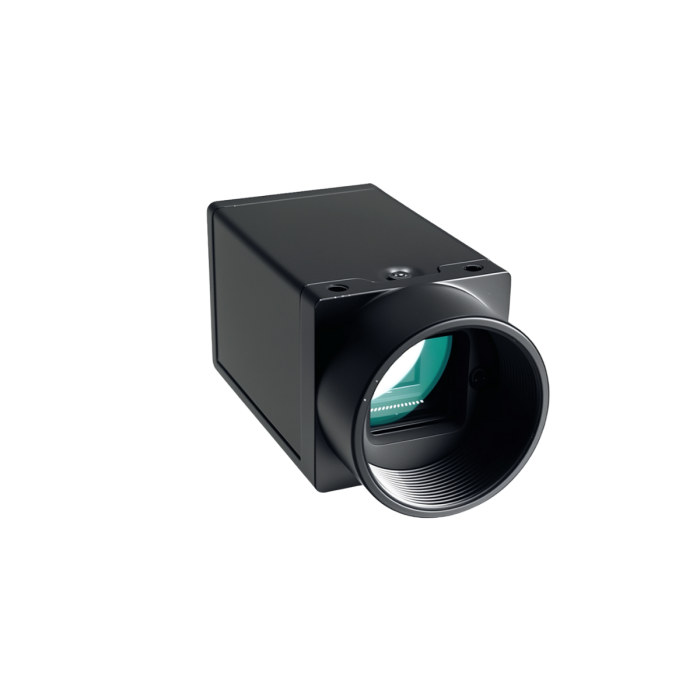

SGigE-E50-H2MC 5MP GigE Camera
Compact 5MP monochrome GigE Vision camera for detailed industrial inspection and automation.
Key Features:
- HAITU HT50A 5MP monochrome sensor
- 2448 x 2048 resolution at 23.5 fps
- Rolling shutter image capture
- GigE Vision with up to 120 MB/s output
- External trigger and software trigger
Description
Product Overview
The SENSING SGigE-E50-H2MC is a monochrome area-scan GigE camera designed for industrial inspection, measurement and machine-vision applications. Built around the HAITU 5MP HT50A monochrome CMOS, it captures 2448 x 2048 images at up to 23.5 fps. The rolling shutter design supports detailed high-resolution imaging in controlled inspection environments.
The camera combines GigE Vision connectivity with up to 120 MB/s image output, external and software triggering, standard network interface card compatibility and cable runs of up to 100 metres. Support for LabVIEW and HALCON development environments, together with compatibility for NVIDIA Jetson Orin Nano and Orin NX platforms, helps simplify integration into embedded vision, automation and edge-computing systems.
Key Features
Industrial Monochrome Imaging
- HAITU 5MP HT50A monochrome CMOS for monochrome industrial imaging
- 2448 x 2048 image resolution
- Maximum frame rate of 23.5 fps
- Rolling shutter capture suited to the intended inspection workload
GigE Vision Connectivity
- GigE Vision camera interface
- Image output up to 120 MB/s
- Supports standard network interface cards
- Cable lengths up to 100 metres, with extension possible through network equipment
Trigger and Software Integration
- External trigger support for synchronised image capture
- Software trigger support for application-controlled acquisition
- Compatible with LabVIEW and HALCON vision development software
- Supports NVIDIA Jetson Orin Nano and Orin NX platforms
Compact Industrial Design
- C-mount lens interface for machine-vision optics
- Compact 29 x 29 x 56.1 mm enclosure
- 51 g camera weight
- 0°C to +50°C operating temperature range
Deployment and Configuration
- Separate 9V to 24V DC power input for system integration
- Fixed-lens factory configuration is available for deployment-ready installation
- Replaceable-lens requirements should be specified when ordering
- Internal camera calibration can be requested as part of the factory configuration
Applications and Use Cases
The SGigE-E50-H2MC is suitable for:
- Automated quality inspection
- Printed material inspection
- Food processing inspection
- Fluid, wood and metal monitoring
- NVIDIA Jetson-based machine-vision and edge-AI development
Download
More Information
| Brand | SENSING | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Manufacturer Part Number | Description |
|---|---|
| SGigE-E50-H2MC | 5MP area scan monochrome GigE camera; confirm lens and calibration requirements when ordering |
