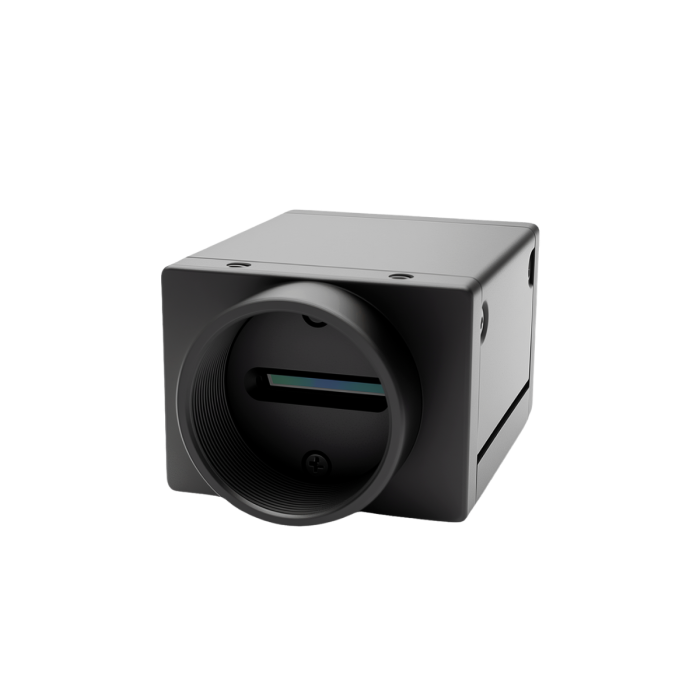

SGigE-L041-N1XMC 4K 10GigE Line Scan Camera
Compact 4K global-shutter monochrome 10GigE line-scan camera for automated inspection.
Key Features:
- 4K P7028SL monochrome line sensor
- 4096 x 1 line resolution
- Global shutter image capture
- 10GigE industrial camera interface
- External trigger and software trigger
Description
Product Overview
The SENSING SGigE-L041-N1XMC is a monochrome line-scan GigE camera designed for continuous inspection of moving materials, printed products and wide industrial surfaces. Built around the 4K P7028SL monochrome CMOS, it captures 4096 x 1 image lines using a global shutter architecture. Its 64 kHz sudden / 29 kHz continuous line frequency supports detailed acquisition in production and machine-vision systems where consistent imaging across the width of an object is required.
The camera combines 10 Gigabit Ethernet / GigE Vision connectivity with up to 120 MB/s (manufacturer-published) image output, external and software triggering, standard network interface card compatibility and cable runs of up to 100 metres. Support for LabVIEW and HALCON development environments, together with compatibility for NVIDIA Jetson Orin Nano and Orin NX platforms, helps simplify integration into embedded vision, automation and edge-computing systems.
Key Features
High-Resolution Line-Scan Imaging
- 4K P7028SL monochrome CMOS for monochrome line-scan imaging
- 4096 x 1 output for detailed inspection across wide surfaces
- Global shutter capture for consistent acquisition of moving material
- 64 kHz sudden / 29 kHz continuous manufacturer-specified line frequency
GigE Vision Connectivity
- 10 Gigabit Ethernet / GigE Vision camera interface
- Image output up to 120 MB/s (manufacturer-published)
- Supports standard network interface cards
- Cable lengths up to 100 metres, with extension possible through network equipment
Trigger and Software Integration
- External trigger support for synchronised image capture
- Software trigger support for application-controlled acquisition
- Compatible with LabVIEW and HALCON vision development software
- Supports NVIDIA Jetson Orin Nano and Orin NX platforms
Compact Industrial Design
- C-mount lens interface for machine-vision optics
- Compact 30 x 40 x 56.5 mm enclosure
- Less than 55 g camera weight
- 0°C to +50°C operating temperature range
Deployment and Configuration
- Separate 9V to 24V DC power input for system integration
- Fixed-lens factory configuration is available for deployment-ready installation
- Replaceable-lens requirements should be specified when ordering
- Internal camera calibration can be requested as part of the factory configuration
Applications and Use Cases
The SGigE-L041-N1XMC is suitable for:
- Web and surface inspection
- Printed material inspection
- Food processing inspection
- Wood and metal product inspection
- NVIDIA Jetson-based machine-vision and edge-AI development
Download
More Information
| Brand | SENSING | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
| Manufacturer Part Number | Description |
|---|---|
| SGigE-L041-N1XMC | 4K line scan monochrome GigE camera; confirm lens and calibration requirements when ordering |
