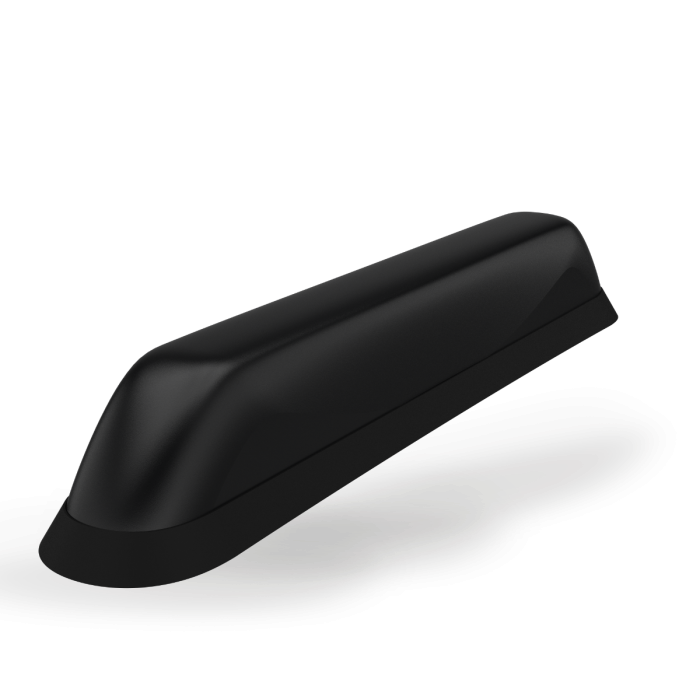

SHK4-7-49 4X4 MiMo 4G/5G Reef Sharkee Antenna
4X4 MiMo 4G/5G Reef Sharkee Antenna
Key Features:
- Sleek sharkfin design
- 4×4 MiMo 698-960/1427-4900MHz
- Up to 4×4 MiMo WiFi 6e (optional)
- GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (optional)
Description
The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one-size-fits-all solution for mobile applications. The robust low-profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.
The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.
The product is supplied with low-loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are available for different applications.
The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panels.
Download
More Information
| Brand | Panorama Antennas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
