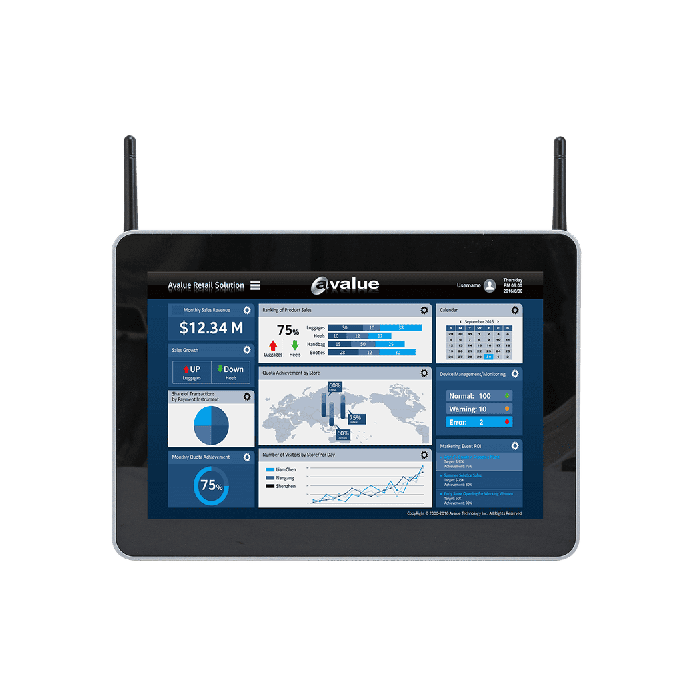

SID-10W04 10.1" Semi Industrial Panel PC with Celeron J3455
10.1" Semi-Industrial Panel PC with Intel® Celeron™ Processor J3455
Key Features:
- 10.1" 800 x 1280 Semi-Industrial Panel PC with True-flat PCAP touch
- Intel® Celeron® Processor J3455
- 1 x 204-pin SO-DIMM DDR3L 4GB (8GB for BOM Option)
- 32GB eMMC / 1 x M.2 B Key for SSD
- Fanless operation from 0°C ~ 40°C
- Wide voltage input +12 ~ 24Vdc
Description
Product Overview
The Avalue SID-10W04 is a 10.1″ semi-industrial panel PC engineered for embedded and industrial applications. Featuring an Intel Celeron J3455 processor, fanless operation, a true-flat PCAP multi-touch display, and a wide DC input range, it is designed for robust HMI, kiosk, digital signage, and smart-terminal installations. With IP65 front-panel protection and VESA/mounting flexibility, the SID-10W04 brings industrial reliability in a compact footprint.
Key Features
Compact Performance
-
Intel Celeron J3455 quad-core CPU at 1.50 GHz
-
4 GB DDR3L SO-DIMM memory (8 GB optional) and 32 GB eMMC storage
-
Integrated Intel HD Graphics 500 engine
Rugged and Reliable Design
-
Fanless design for silent, maintenance-free operation
-
Operating temperature range from 0 °C to 40 °C and storage from -20 °C to 60 °C
-
Front panel rated IP65 for dust and water protection
Display and Touch Interface
-
10.1-inch TFT display with 1280 × 800 resolution and 10-point projected-capacitive touch
-
Brightness 350 cd/m², contrast ratio 1000:1, and wide 85° viewing angles
-
True-flat design suitable for modern kiosk and control applications
Power and Connectivity
-
Wide input voltage range from 12 V to 24 V DC for flexible integration
-
External I/O includes two USB 3.0 ports, HDMI 1.4b output, one Gigabit LAN port, headphone jack and RS-232 port
-
Internal I/O includes M.2 Key B (3042) slot for SSD or LTE module and optional micro-SIM slot
Certifications and Compliance
-
CE and FCC Class B certified
-
Supports Windows 10 and Ubuntu 20.04 operating systems
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc |
|---|---|
| Specifications |
System Information Processor Intel® Celeron® Processor J3455 System Memory 1 x 204 pin SO-DIMM DDR3L 4GB (8GB for BOM Option) Storage 32GB eMMC Other Storage Device 1 x Micro SD Slot Graphic Chipset Intel® HD Graphics 500 Speaker Output Optional 2 x 4Ω 2W LAN Chipset Realtek RTL8211FI-CG Ethernet Interface 10/100/1000 Base-Tx GbE compatible DC Input +12V ~ +24V DC Input Connector Lockable DC Jack Adapter Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter) OS Windows 10 / Ubuntu 20.04 Certification Information CE, FCC Class B LCD Size 10.1" LCD Panel TFT Resolution 1280 x 800 Pixel pitch 0.1692 (H) x 0.1692 (V) mm Luminance 350 cd/m² Contrast ratio 1000 Viewing angle 85 (U), 85 (D), 85 (L), 85 (R) Response time 25 ms Backlight LED Touch Type Projective capacitive multi-touch up to 10 points Touch Light Transmission 86% USB Port 2 x USB 3.0 Audio Port 1 x Headphone Jack LAN Port 1 x RJ45 Wireless LAN Antenna 2 x Wi-Fi Antenna COM Port 1 x RS-232 (DB9) HDMI 1 x HDMI 1.4b Switch 1 x Power Button DC input 1 x DC Jack LED indicator 1 x Power LED Expansion 1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module) SIM Slot 1 x Micro SIM Slot WLAN Optional Wi-Fi 802.11ac/a/b/g/n Bluetooth Optional BT 5.0 Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Dimension (W x L x H) 258.8 x 182.8 x 49.6mm Weight 2.6 kg IP Rating Front panel IP65 VESA 75 x 75 Power Requirement DC +12 ~ +24V System Fan Fanless Construction - Front Aluminum extrusion with cover lens Construction - Rear Metal sheet |
Ordering Information
SID-10W04-3411-A1R
SID-10W04 4GB, 32GB
