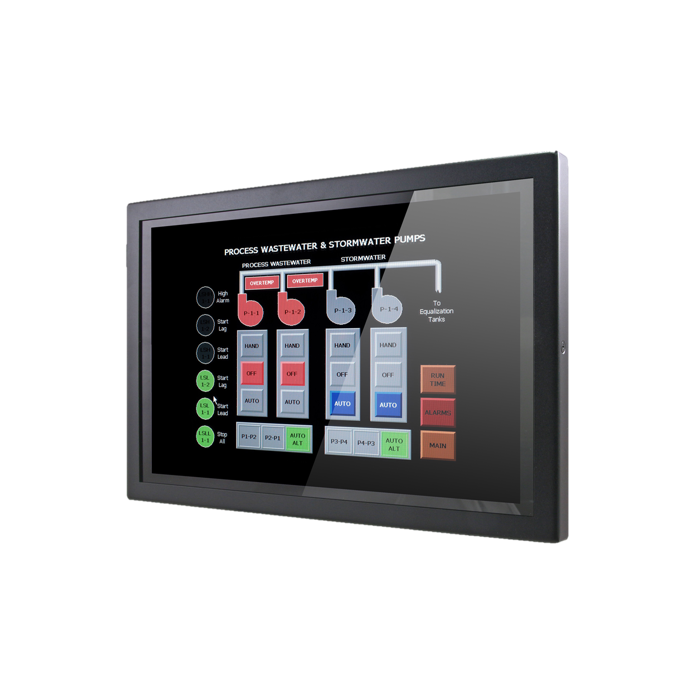

SID-10W03 10.1" Semi Industrial Panel PC with Atom 8350
10.1" Wide Semi-Ind Ultra Slim Panel PC with ATOM Z3735F CPU
The SID-10W9 is ultra slim semi-industrial panel PC with PCAP touch and IP65 rated front panel. It is based on the Intel® Atom™ x5-Z3735F Processor. The unit has 2GB together with a choice of 32 or 64GB onboard eMMC storage.
The SID-10W09 is DC powered from 12 or 24v
Its the ideal solution for the range of applications such as point of information, Kiosk and industrial automation
System Information
-
Processor
Intel Atom® x5-Z8350 Processor
-
System Memory
2GB/4GB LPDDR3
Storage
-
Storage
32GB/ 64GB eMMC
Power Requirement
-
DC Input
DC 12~24V
Software Support
-
OS
Windows 10 2019 / Linux(TBA)
Certification
-
Certification Information
CE/FCC Part 15, Subpart B
Panel
-
LCD Size
10.1"
-
LCD Panel
TFT LCD
-
Display Type
WXGA
-
Resolution
1280x800
-
Pixel pitch
0.1695(H)X0.1695(V) mm
-
Luminance
350 cd/m2(typ)
-
Contrast ratio
800
-
Viewing angle
85 (U), 85 (D), 85 (L), 85 ( R)
-
Response time
30ms
-
Backlight
LED
-
Touch Type
PCAP
-
Touch Light Transmission
86%
External I/O
-
USB
1 x USB 3.0, 2 x USB 2.0
-
Video Port
1 x HDMI 1.4 output
-
Audio Port
1 x Line out
-
Wireless LAN Antenna
1 x SMA type connector
Data Communication
-
WLAN
WIFI 802.11 b/g/n/ac
Mechanical & Environmental
-
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
-
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
-
Weight
1.5 kg
-
IP Rating
Front IP65
-
Mounting Kit
75 x75mm
-
Dimension (W x L x D)
255.2 x 169.4 x 40.7mm
-
Power Requirement
DC 12~24V
-
Power Mode
AT mode (Default)
-
Construction
Metal
Component
-
Adapter
Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter)
Ordering Information
-
Ordering Information
SID-10W03-5004-A1R : SID-10W03 2GB 32GB / Ubuntu 19.04
SID-10W03-5005-A1R : SID-10W03 2GB, 32GB / Win 10
SID-10W03-5007-A1R : SID-10W03 4GB, 64GB / Ubuntu 19.04
SID-10W03-5008-A1R : SID-10W03 4GB, 64GB / Win 10
