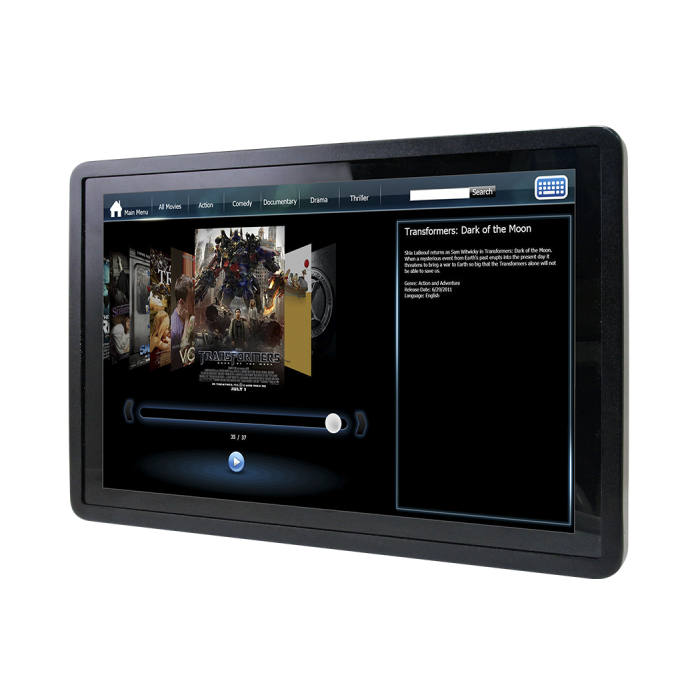

SID-10WAD 10.1" Semi-Industrial Panel PC with Intel N50
10.1" Semi-Industrial Panel PC with Intel N50
Key Features:
- 10.1" 1920 x 1200 Semi-Industrial Panel PC with PCAP touch
- Intel® Processor N50, 6M Cache, up to 3.4 GHz
- Onboard 8GB LPDDR / 64GB eMMC
- Supports Windows 10/11, Ubuntu 24.04
- Fanless operation from 0°C ~ 40°C
Description
Product Overview
The Avalue SID-10WAD is a 10.1-inch semi-industrial panel PC designed for embedded and industrial applications requiring reliable, low-power performance. Powered by the Intel Alder Lake-N N50 processor with onboard 8 GB LPDDR memory and 64 GB eMMC storage, it features a high-resolution PCAP multi-touch display, fanless operation and wide 12 V to 24 V DC input. With optional Wi-Fi and Bluetooth connectivity, VESA or panel mounting options, and support for Windows 10, Windows 11 and Ubuntu 24.04, the SID-10WAD is ideal for kiosks, HMIs, thin clients and digital signage environments.
Key Features
Compact Performance
- Intel Alder Lake-N N50 processor (up to 3.4 GHz)
- 8 GB LPDDR memory and 64 GB eMMC onboard storage
- Fanless architecture ensures silent and reliable operation
- Supports Windows 10, Windows 11 and Ubuntu 24.04 operating systems
Rugged and Reliable Design
- Wide DC input range from 12 V to 24 V for flexible power integration
- Operating temperature range from 0 °C to 40 °C and storage from −10 °C to 60 °C
- True-flat bezel design suitable for public-facing or industrial environments
Display and Touch Interface
- 10.1-inch TFT display available in 1280 × 800 or 1920 × 1200 resolutions
- Projected-capacitive multi-touch supporting up to 10-point input
- Brightness 350 cd/m² and wide viewing angles for excellent readability
Power and Connectivity
- Lockable DC power jack for secure industrial installation
- External I/O includes two USB 3.0 ports, HDMI 2.0 output, RJ45 Gigabit LAN, COM port and audio jack
- Integrated Wi-Fi (802.11 a/b/g/n/ac/ax) and optional Bluetooth support
Certifications and Compliance
- CE and FCC Class B certified
- Designed for 24/7 operation in embedded and semi-industrial applications
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc |
|---|---|
| Specifications |
System Information Processor Intel® Processor N50, 6M Cache, up to 3.4 GHz System Memory 8GB LPDDR5 Storage 64GB eMMC Speaker Output Optional 2 x 4Ω 2W LAN Chipset Realtek RTL8111I-CG Ethernet Interface 10/100/1000 Base-Tx GbE compatible DC Input +12V DC Input Connector Lockable DC Jack OS Windows 10/11, ubuntu 24.04 Certification Information CE, FCC Class B LCD Size 10.1" Resolution 1280 x 800 Luminance 350 cd/m² Viewing angle 87.5 (U), 87.5 (D), 87.5 (L), 87.5 (R) Touch Type Projective capacitive multi-touch up to 10 points USB Port 2 x USB 3.0 Audio Port 1 x Audio Jack TRS LAN Port 1 x RJ45 COM Port 1 x COM (RS-232/RS-485) Other 1 x Power button w/ LED HDMI 1 x HDMI 2.0 Out DC input 1 x DC Jack LED indicator 1 x Power LED Expansion 1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module) SIM Slot 1 x Micro SIM Slot WLAN Wi-Fi 802.11a/b/g/n/ac/ax Bluetooth Optional BT 5.2 Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Dimension (W x L x H) 255 x 169 x 42 mm Power Requirement DC +12V System Fan Fanless
|
