SID-10WR01 - 10.1" Wide Semi-Ind Ultra Slim Panel PC, Rockchip RK3288

End of Life
SKU: SID-10WR01

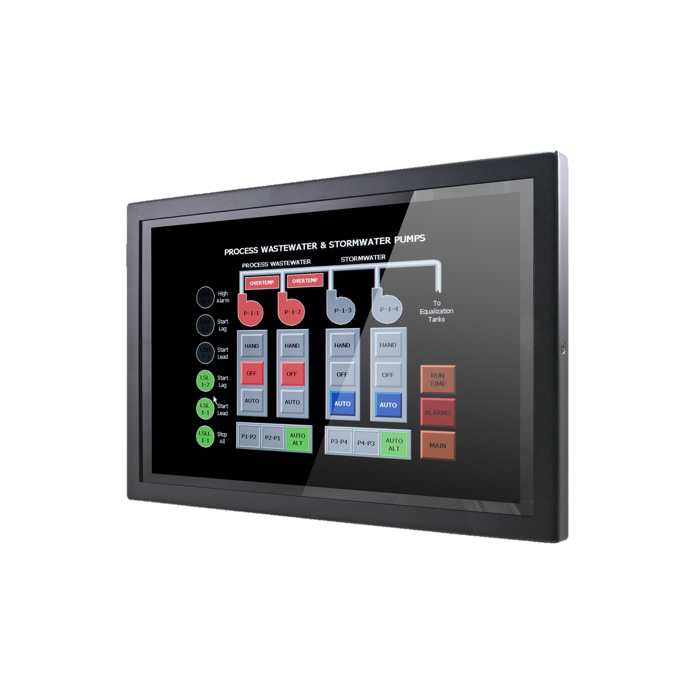

SID-10WR01 - 10.1" Wide Semi-Ind Ultra Slim Panel PC, Rockchip RK3288

Datasheet

Description

The SID-10WR1 is semi-industrial panel PC with PCAP touch and IP65 rated front panel. It is based on ARM based Rockchip RK3288 processor. The unit has 2GB together with a choice of 16GB onboard eMMC storage.

The SID-10WR1 is DC powered from 12 or 24v

Its the ideal solution for the range of applications such as point of information, Kiosk and industrial automation

Download

SID-10WR1_2181014541.pdf

More Information

Specifications



  • 10.1” TFT-LCD, WXGA, 1280 x 800
  • Projective Capacitive Multi-Touch
  • IP65 Front Panel
  • RockChip RK3288 Cortex-A17 Quad Core 1.6GHz
  • 2GB DDR3L on board
  • 16GB eMMC on board
  • 1 x 802.11 b/g/n Wireless LAN and Bluetooth 4.0
  • 1 x 10/100/1000 Ethernet
  • 2 x USB Type A, 1 x HDMI output, 1 x Head phone jack
  • Wide range DC 12~24V DC input
  • Optional Powered LAN (802.3AT)
